Package Contents
- 1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Rack Mounting Kit
- 1x User Instructions
Email : info@tvwall.id
- (021) 8633 1886
- 081 7776 118
Matrix

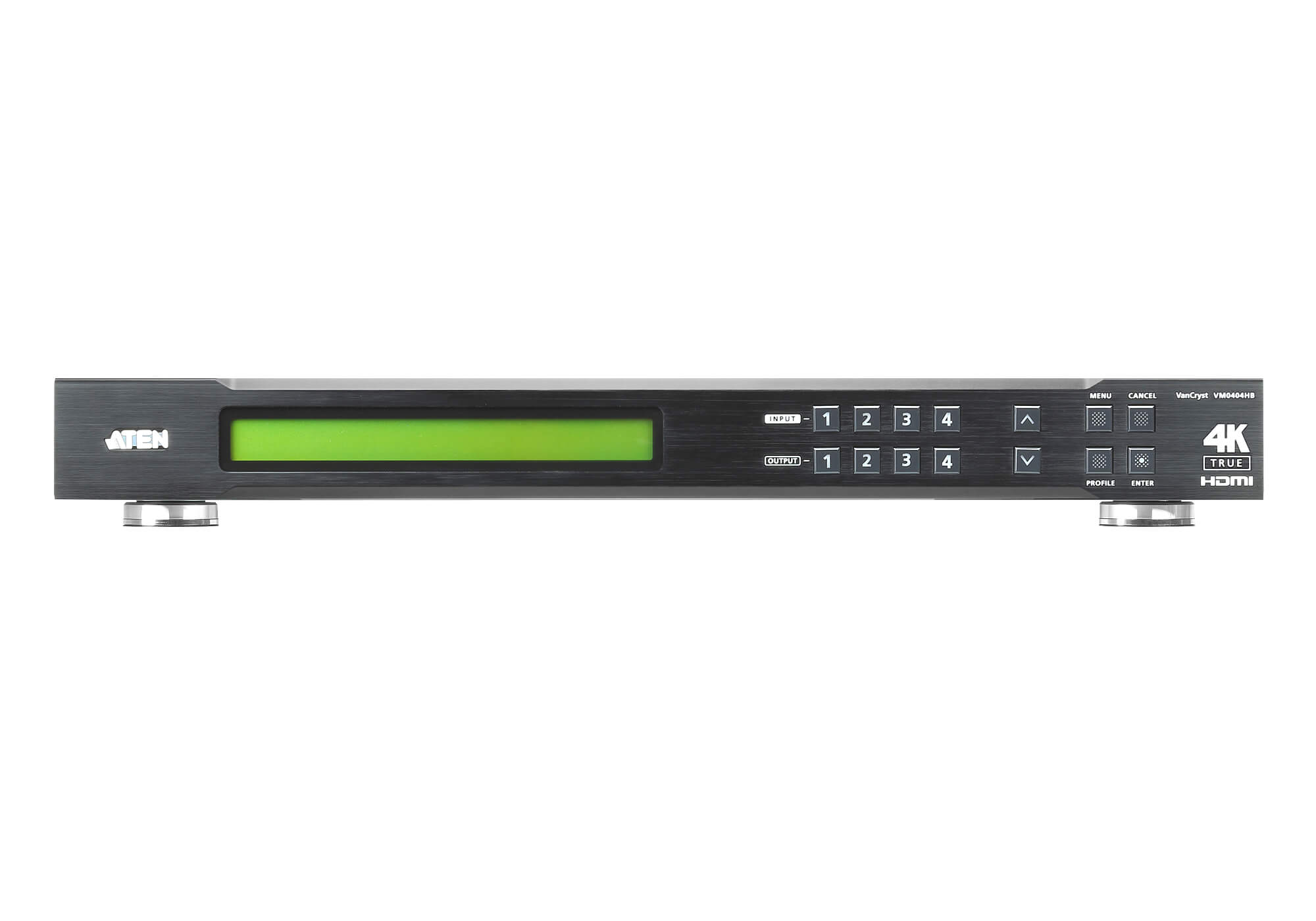

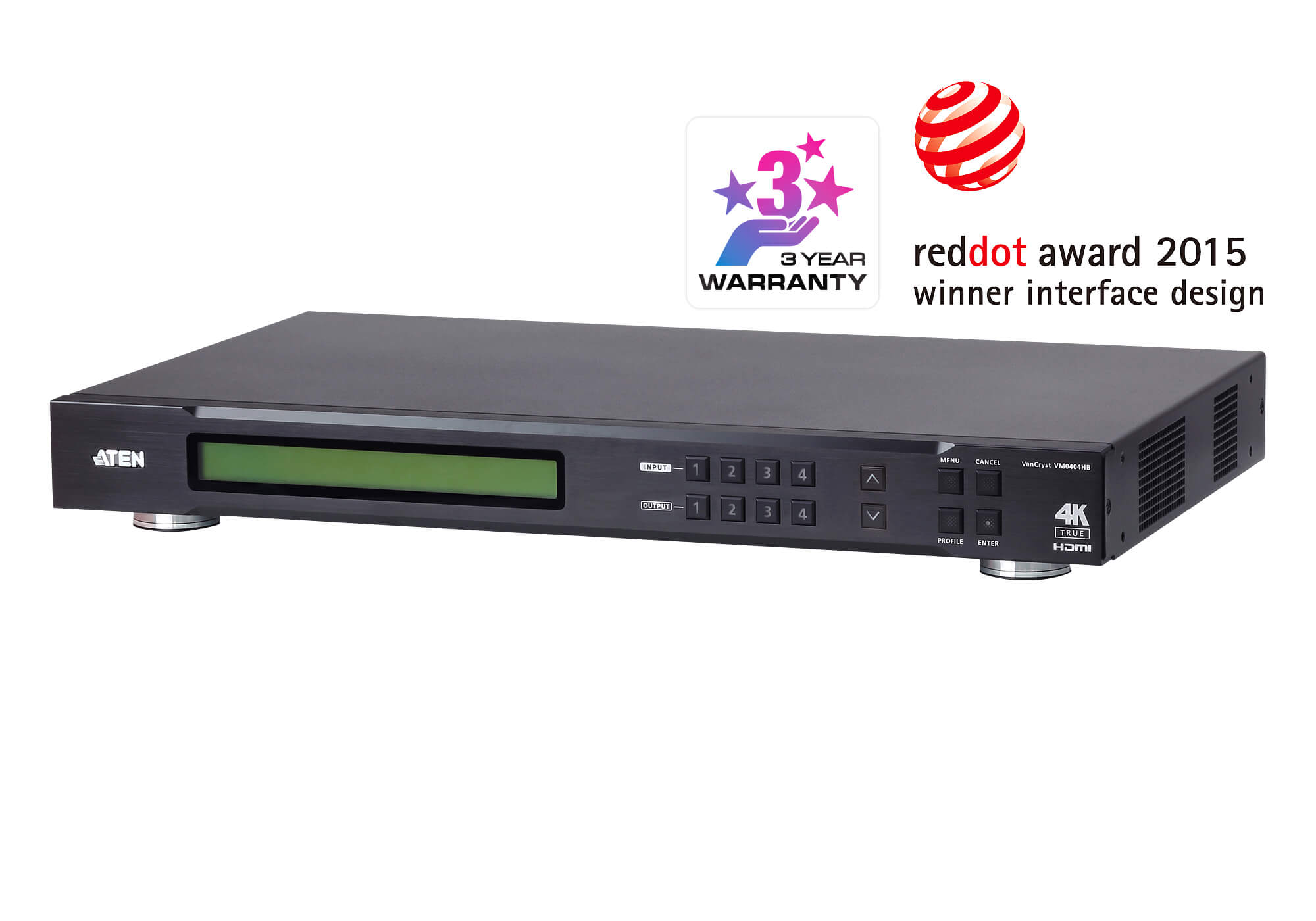

ATEN 4×4 True 4K HDMI Matrix Switch – VM0404HB for Video Walls
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)

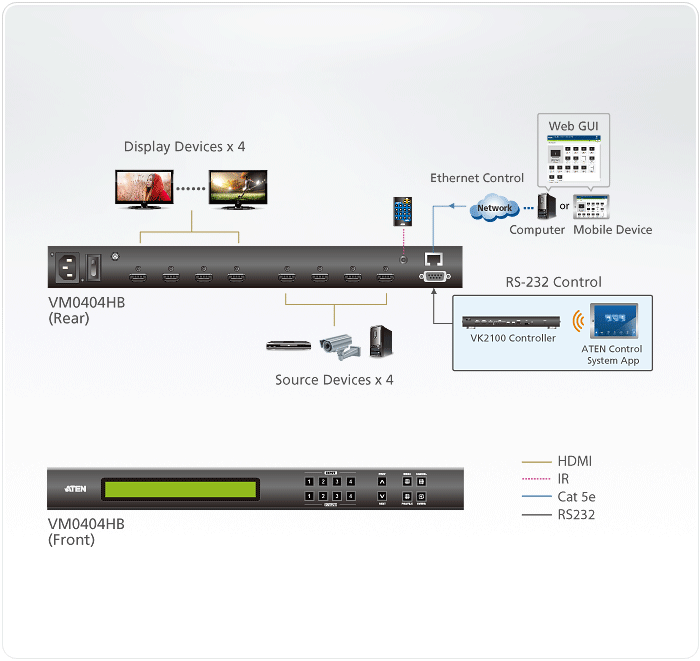

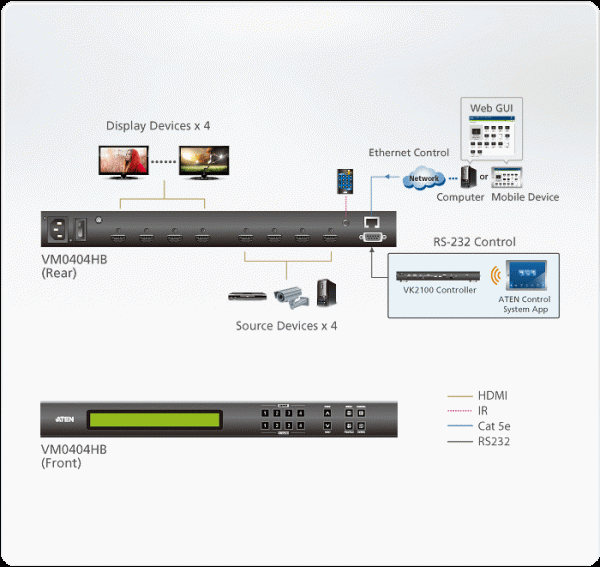

- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports HDR10+
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection – switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
- Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)

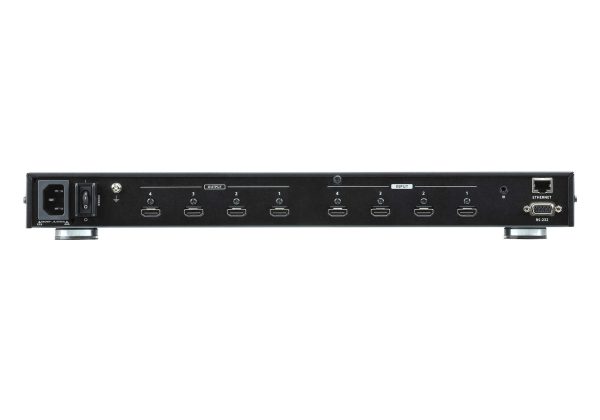

| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5.0 m / 4K@60Hz (4:4:4) |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Max. Distance | 5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200 |
| Impedance | 100 Ω |
| Video | |
| Max. Pixel Clock | 600 MHz |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Data Rate | 18 Gbps( 6 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
| Environmental | |
| Operating Temperature | 0-40°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Storage Temperature | -20 – 60°C |
| Physical Properties | |
| Weight | 2.47 kg ( 5.44 lb ) |
| Housing | Metal |
| Dimensions (L x W x H) | 43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 in.) |
| Connectors | |
| Power | 1 x 3-Prong AC Socket |
| Carton Lot | 1 pc |
| Power Consumption | AC110: 17.8W:83BTU/h AC220:17.6W:83BTU/h Note: |
| Power | |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
