ATEN VC965-AT
DisplayPort to DVI Adapter

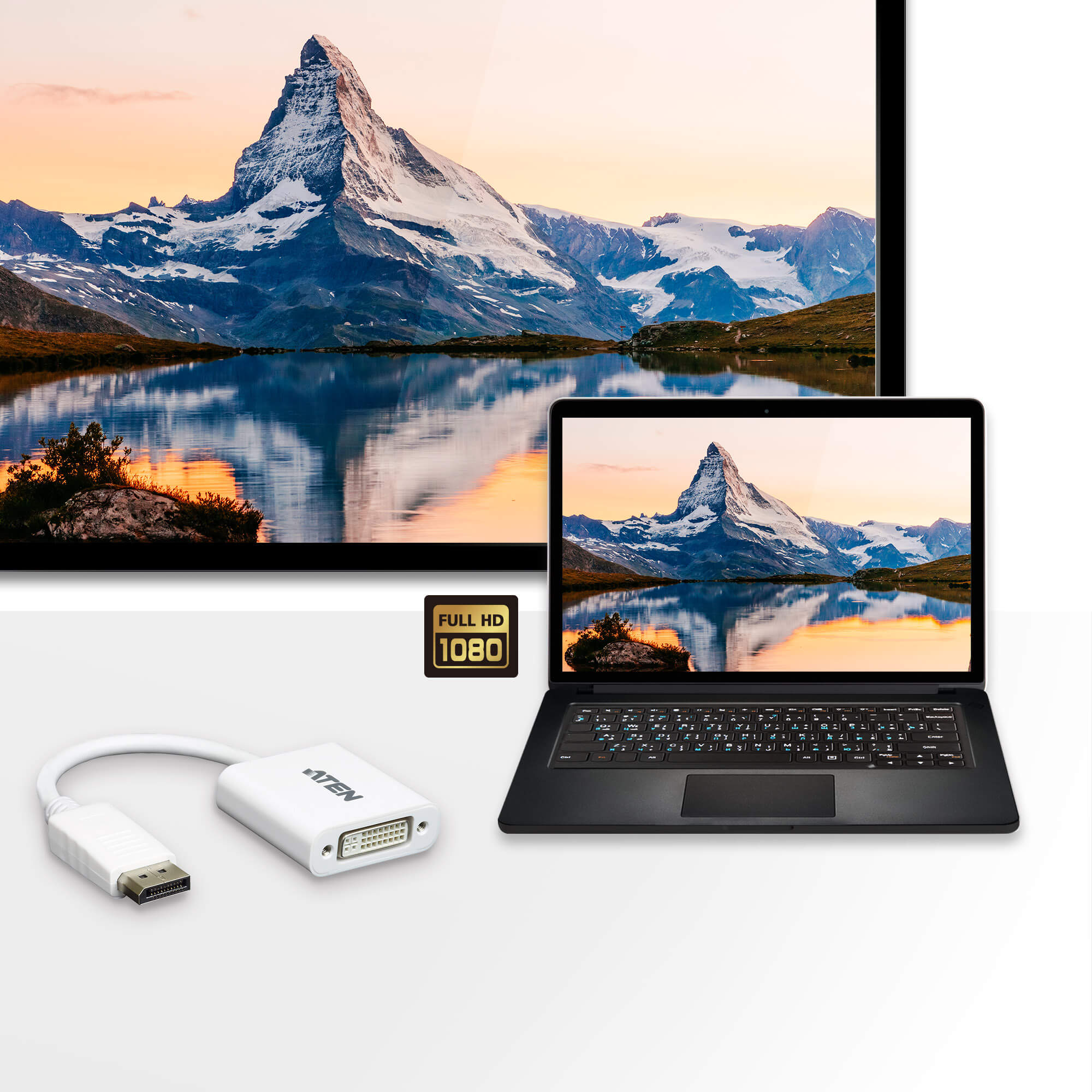

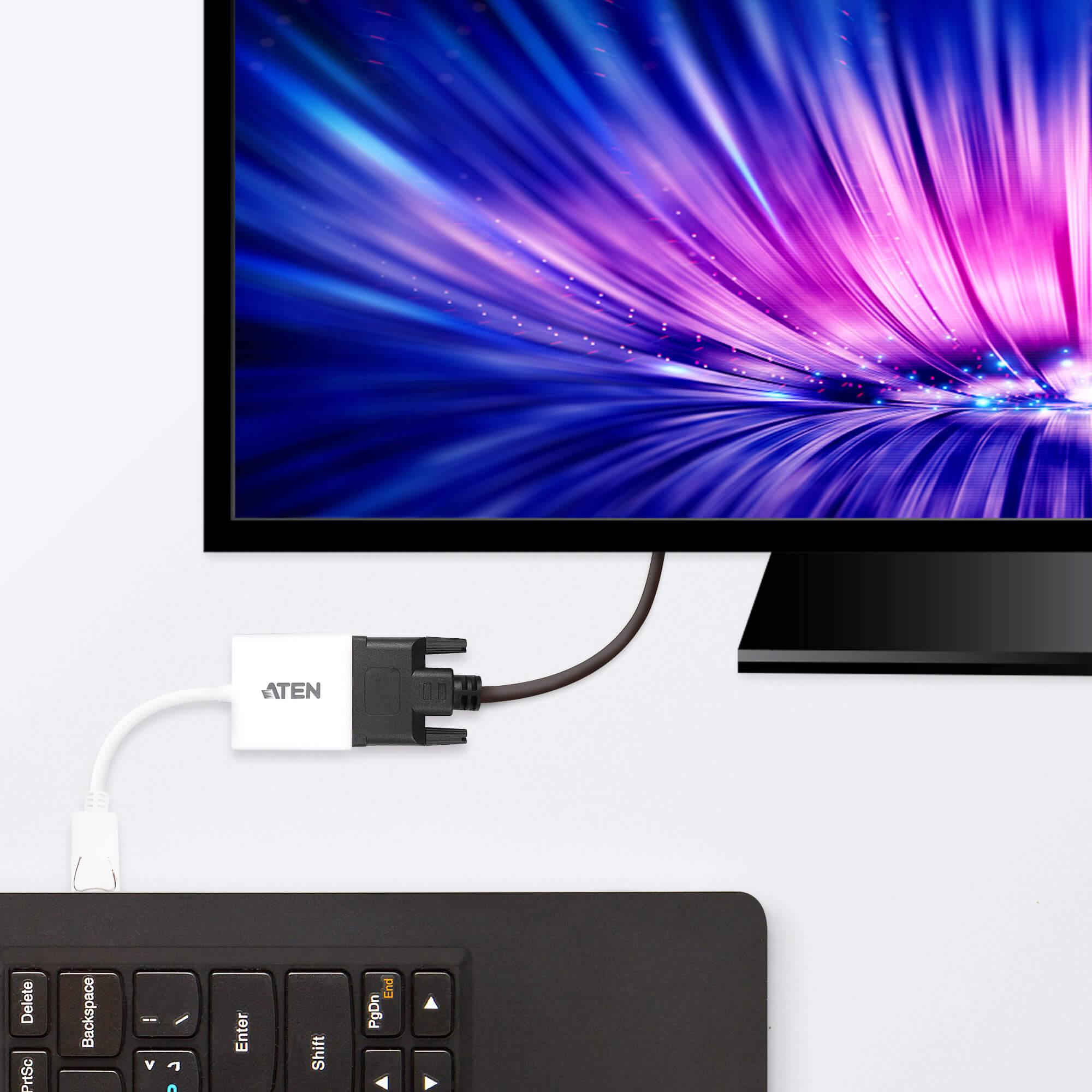

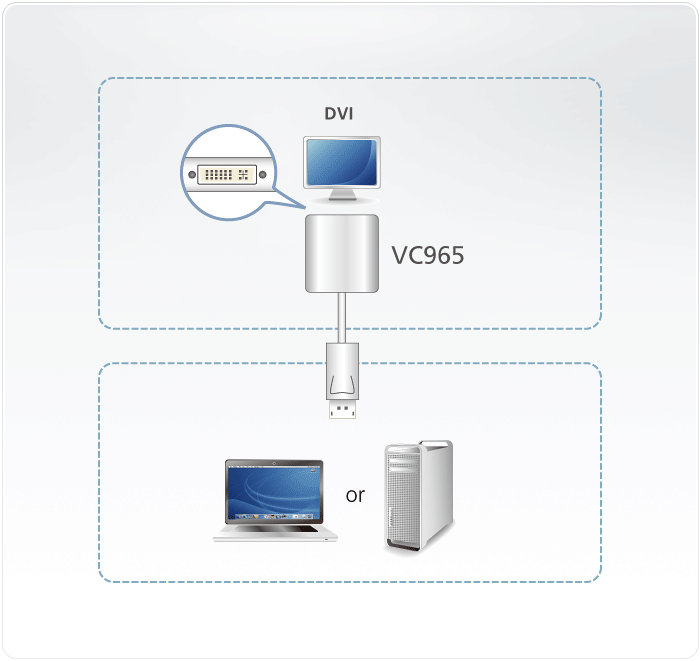

The ATEN VC965 is a straightforward DisplayPort to DVI adapter that lets you connect a DisplayPort source (PC, laptop etc.) to a DVI display. It supports DP1.2, resolutions up to 1920×1080 @ 60 Hz (1080p), and works without any additional software or drivers. Built with internal copper‑foil shielding for signal integrity.
Specification
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x DVI-I* Female (White) *Only support digital signal transmission |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1080 |
| Compliance | DP 1.2 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
