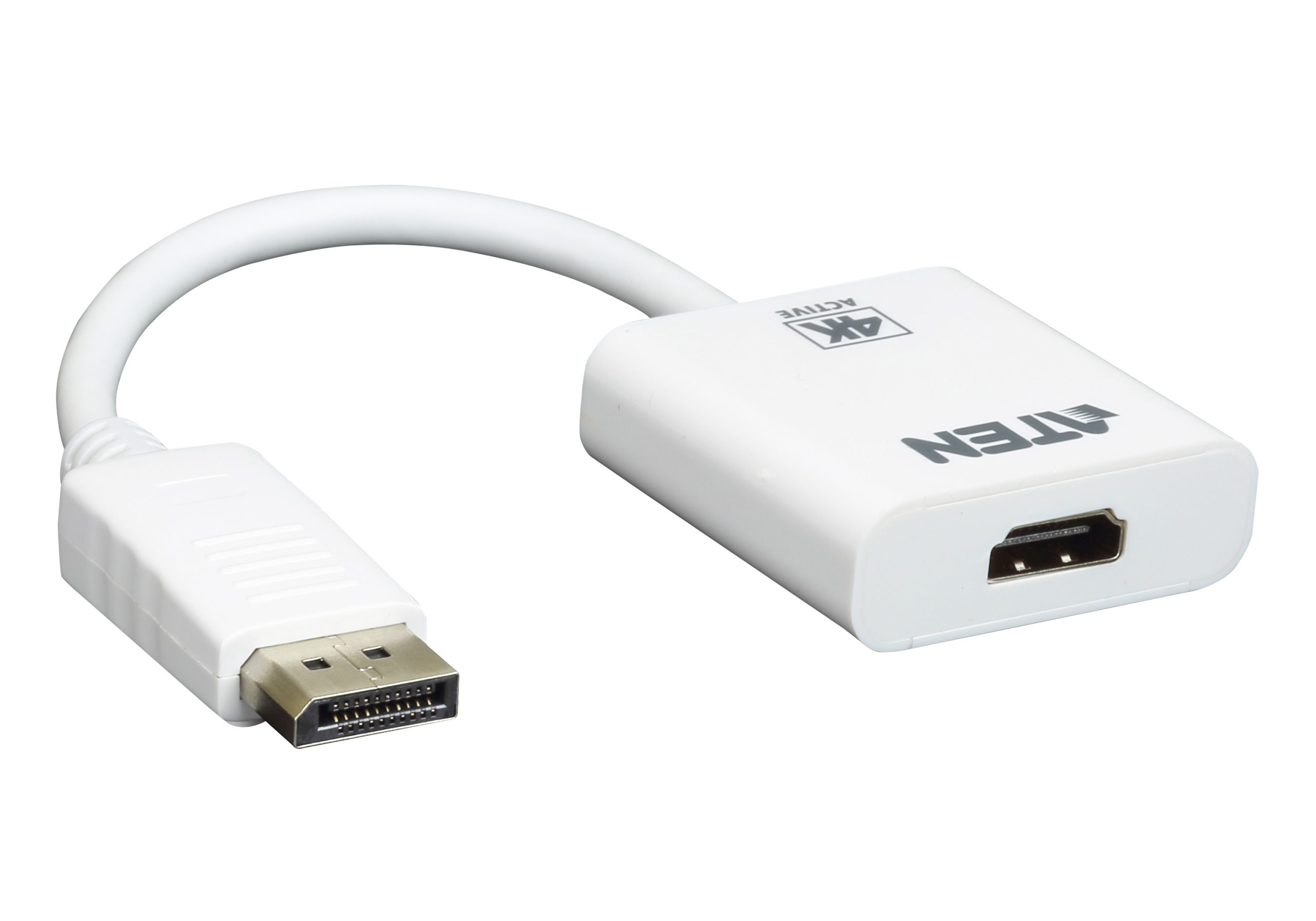

ATEN VC986-AT
4K DisplayPort to HDMI Active Adapter
The ATEN VC986 is an active DisplayPort to HDMI adapter that supports True 4K UHD resolution (3840×2160 @ 30 Hz) and 1920×1200 @ 60 Hz, even when the source device does not support Dual‑Mode DisplayPort (DP++). It includes audio output, is AMD Eyefinity™ compatible for multi‑display use, features internal shielding to reduce interference, and requires no drivers or extra software for setup.
Specification
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 297 MHz |
| Max. Resolution | 3840×2160@30Hz, 1920 x 1200@60Hz. |
| Compliance | DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
