ATEN VC985-AT
DisplayPort to HDMI Adapter

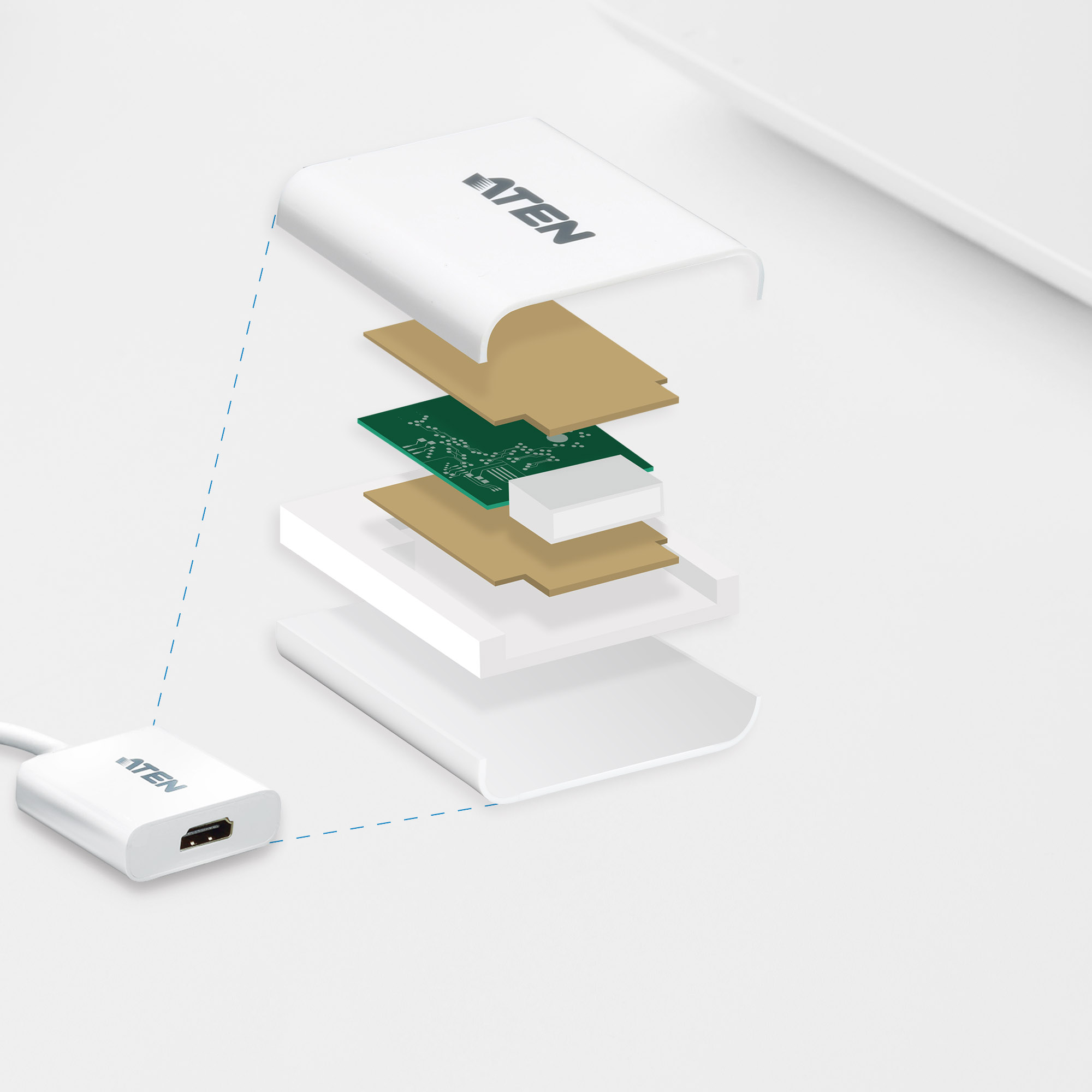

The ATEN VC985 is a cost‑effective DisplayPort to HDMI adapter designed for computers and laptops. It supports DisplayPort 1.2 input and converts to HDMI output with resolution up to 1920×1080 @ 60 Hz, also carrying audio. It requires no software or driver installation, features internal copper‑foil shielding for signal quality, and is ideal for connecting DisplayPort sources to HDMI displays.
Specification
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A female (Black) |
| Video | |
| Max. Pixel Clock | 165MHz |
| Max. Resolution | 1920 x 1080@60HZ |
| Compliance | DP1.2, HDMI 1.3 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
