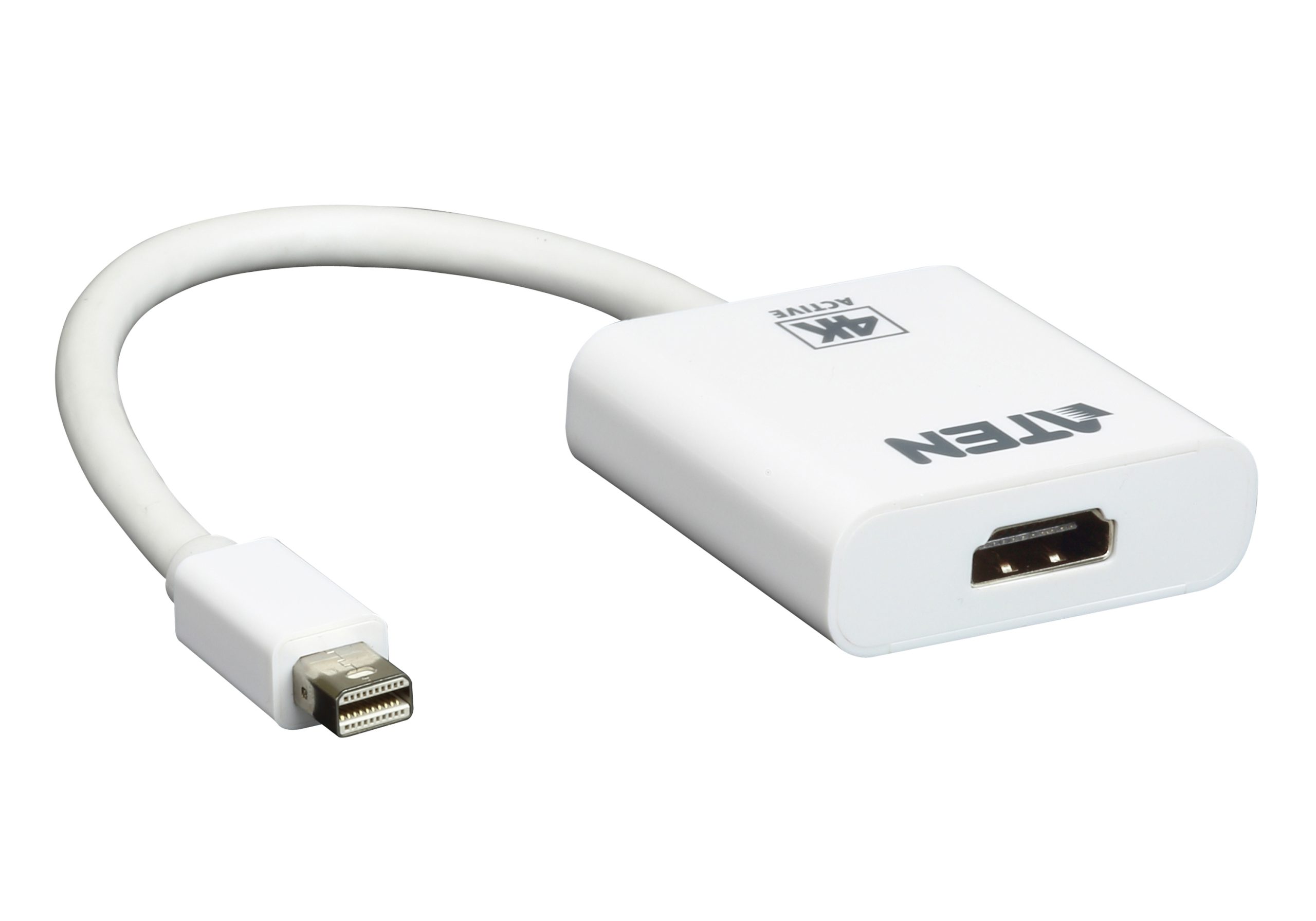

ATEN VC981-AT
4K Mini DisplayPort to HDMI Active Adapter
The ATEN VC981 is an active Mini‑DisplayPort to HDMI adapter that enables modern computers with Mini‑DP or DP output to connect to HDMI displays. It supports up to 3840×2160 @ 30 Hz and 1920×1200 @ 60 Hz, includes audio passthrough, and uses an internal chip to maintain stable conversion even when the source doesn’t support dual‑mode DisplayPort (DP++). No drivers required—ideal for plug‑and‑play display extension.
Specification
| Video Input | |
| Interfaces | 1 x Mini DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 297 MHz |
| Max. Resolution | 3840 x 2160@30Hz, 1920 x 1200@60Hz. |
| Compliance | DP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 17.50 x 4.50 x 1.50 cm (6.89 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
