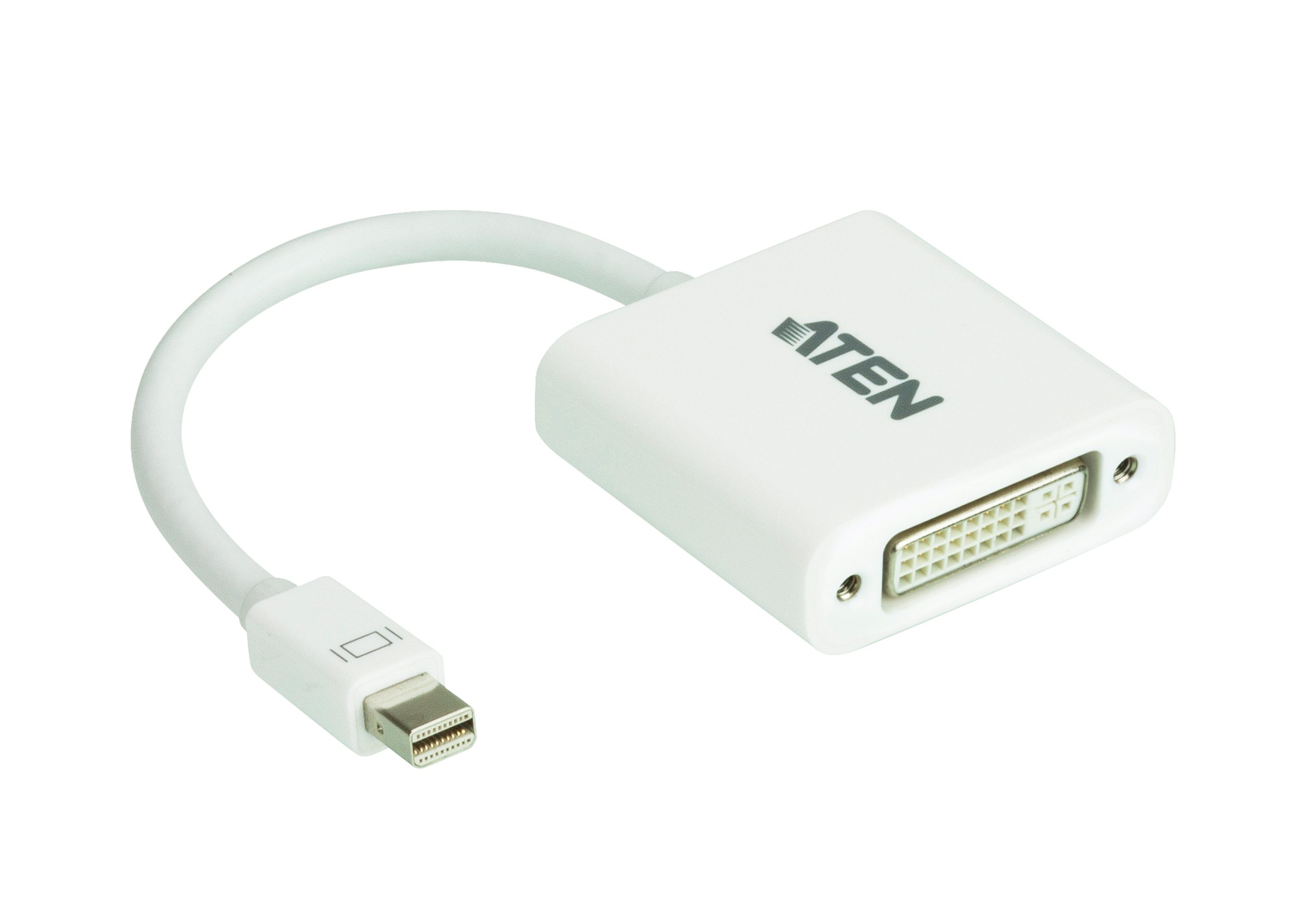

ATEN VC960-AT
Mini DisplayPort to DVI Adapter

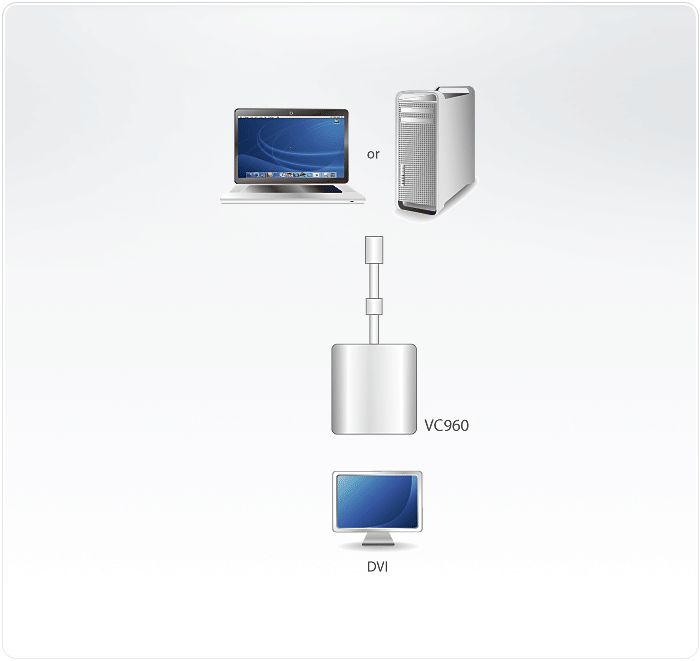

The ATEN VC960 is a plug‑and‑play Mini DisplayPort to DVI adapter that links devices with Mini DisplayPort ports (like MacBook, Mac mini, etc.) to DVI displays. It supports VGA, SVGA, XGA, SXGA, UXGA, and up to 1920×1200 @ 60Hz for PC, or 1080p for HDTV. DisplayPort 1.2 compliant, works without installing extra software or drivers.
Specification
| Video Input | |
| Interfaces | 1 x Mini DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x DVI-I Female (White)* *VC960 Only supports digital signal transmission. |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200 |
| Compliance | DP 1.2 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.05 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 20.00 x 4.30 x 2.01 cm (7.87 x 1.69 x 0.79 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
