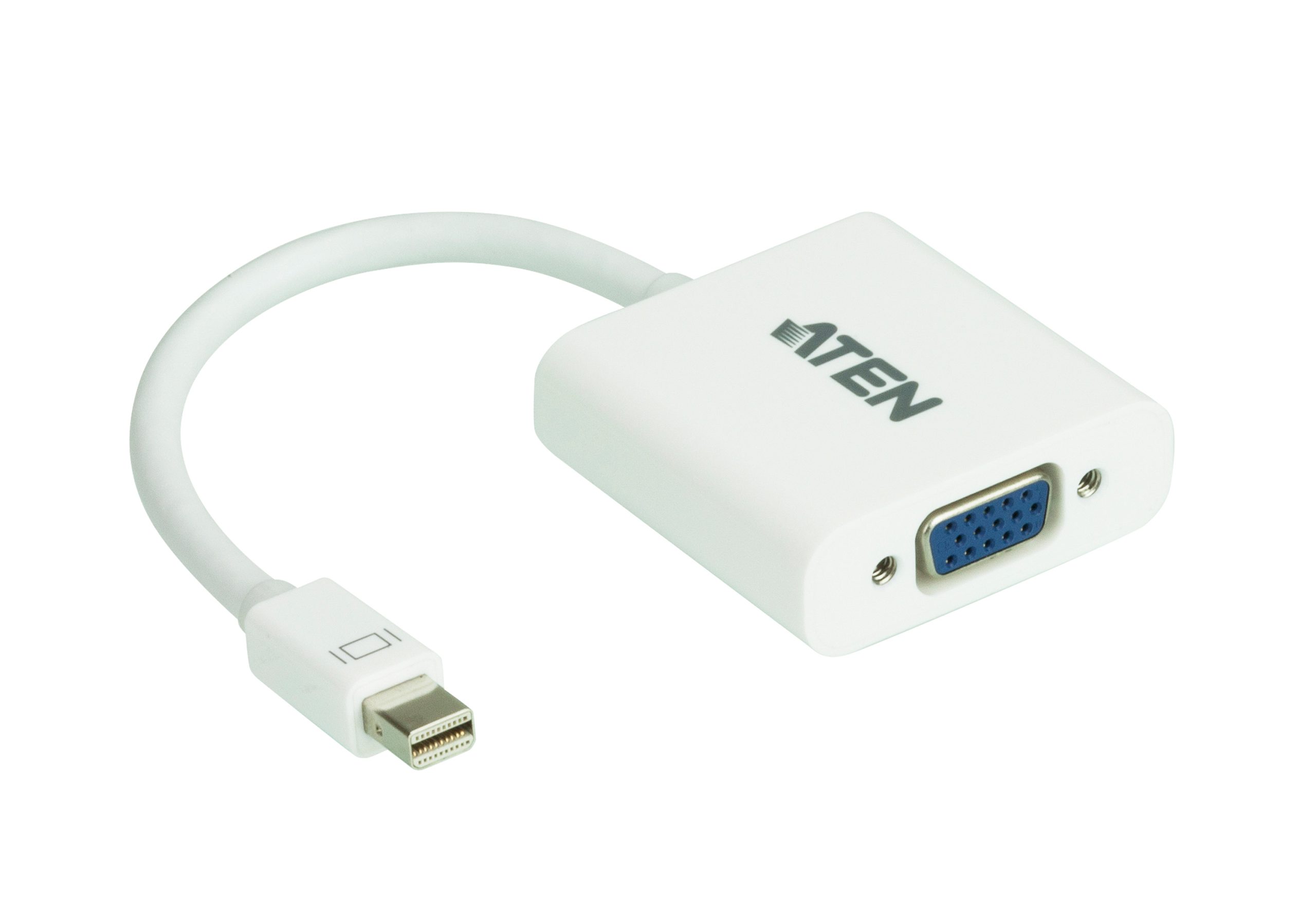

ATEN VC920-AT
Mini DisplayPort to VGA Adapter
The ATEN VC920 is a simple, reliable Mini DisplayPort‑to‑VGA adapter that lets you connect modern devices (like MacBook, MacBook Pro, Mac Air, Mac mini, Mac Pro) with Mini DisplayPort output to VGA displays or projectors. It supports resolutions up to 1920×1200 for PC and 1080p for HDTV, requires no software or driver installation, and is DisplayPort 1.2 compliant.
Specification
| Video Input | |
| Interfaces | 1 x Mini DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input DP 1.2 up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 20.00 x 4.30 x 2.01 cm (7.87 x 1.69 x 0.79 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
