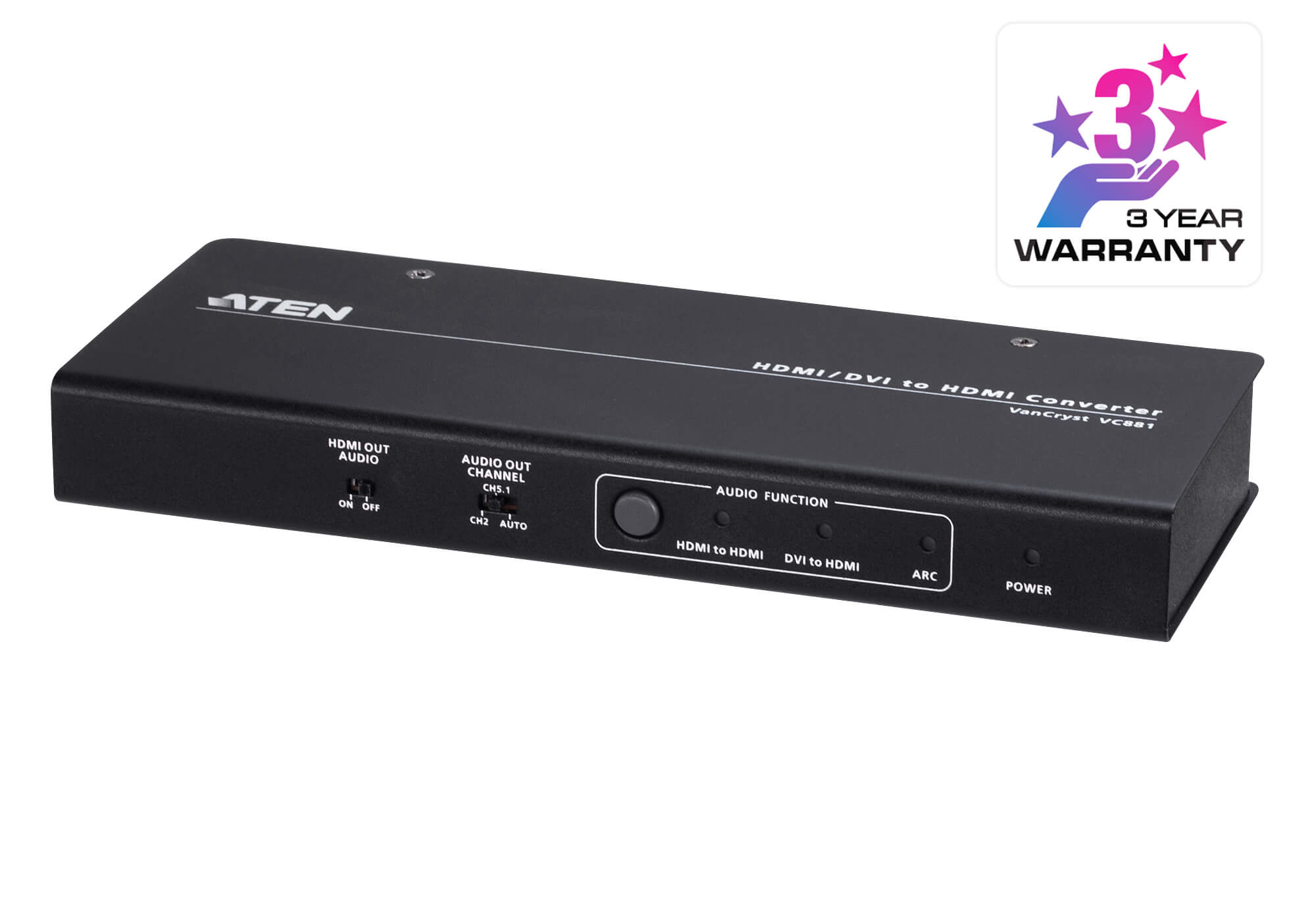

ATEN VC881
4K HDMI/DVI to HDMI Converter with Audio De-embedder

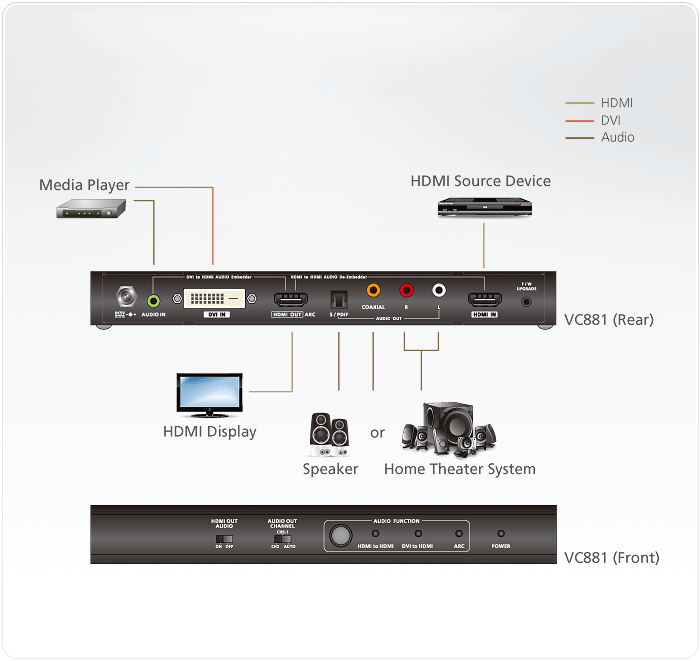

The ATEN VC881 is a versatile 4K HDMI/DVI to HDMI Converter that handles source signals up to 3840×2160 @ 30 Hz via HDMI, or 1920×1200 via DVI, with full HDCP 1.4 compliance. It features audio de‑embedder output options (optical S/PDIF, coaxial, RCA) plus Audio Return Channel (ARC) support, a metal casing, and works well for home theatre, bars, or multi‑AV setups needing clean audio separation.
Specification
| Switches | |

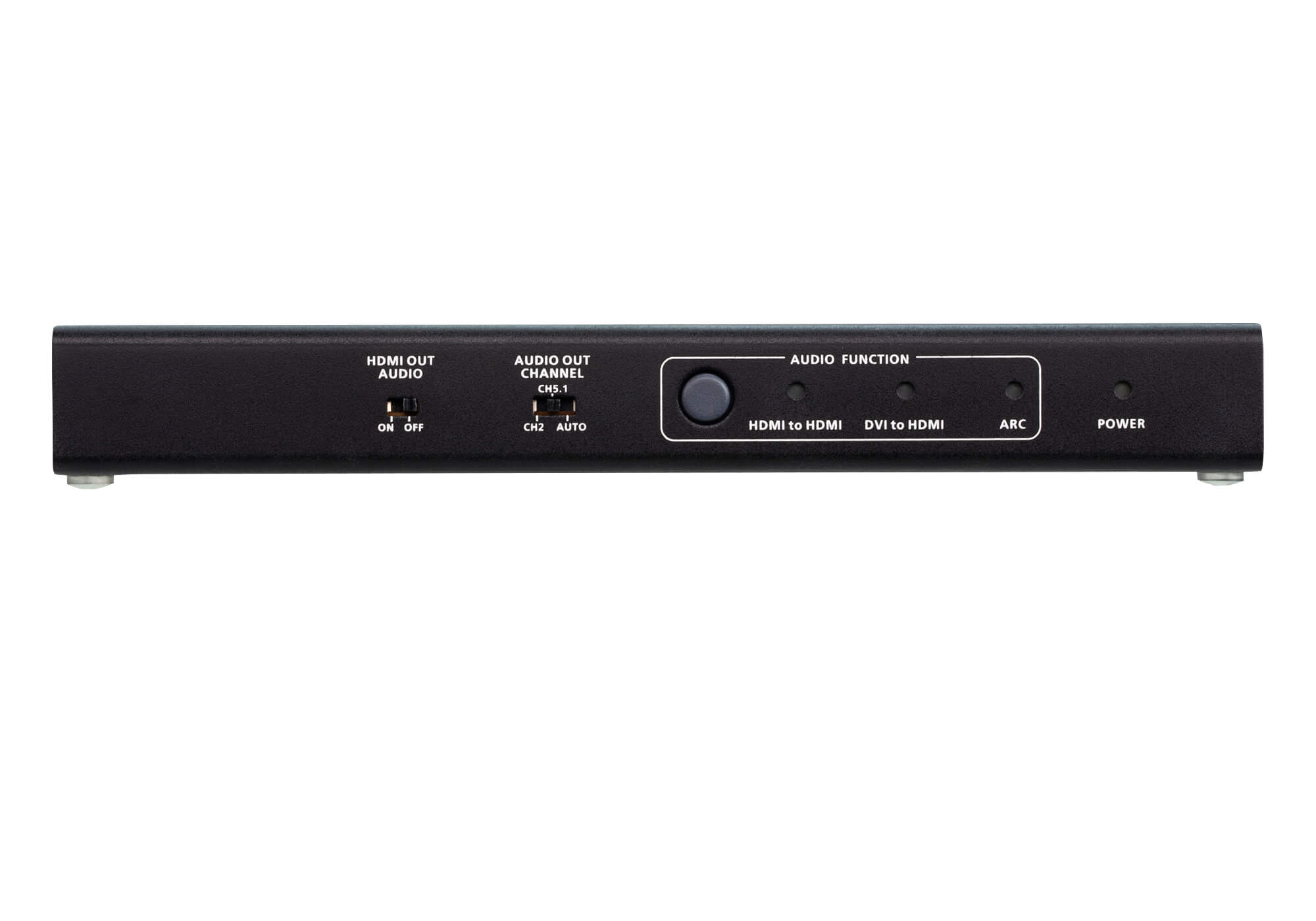

| Mode Selection | Side Switch x 1 (HDMI Audio Out – ON/OFF) Side Switch x 1 (Audio Out Channel – AUTO/CH 5.1/CH 2) Push Button x 1 (Audio Function Selection) 1. HDMI to HDMI 2. DVI to HDMI 3. ARC（Audio Return Channel） |
| Video Input | |

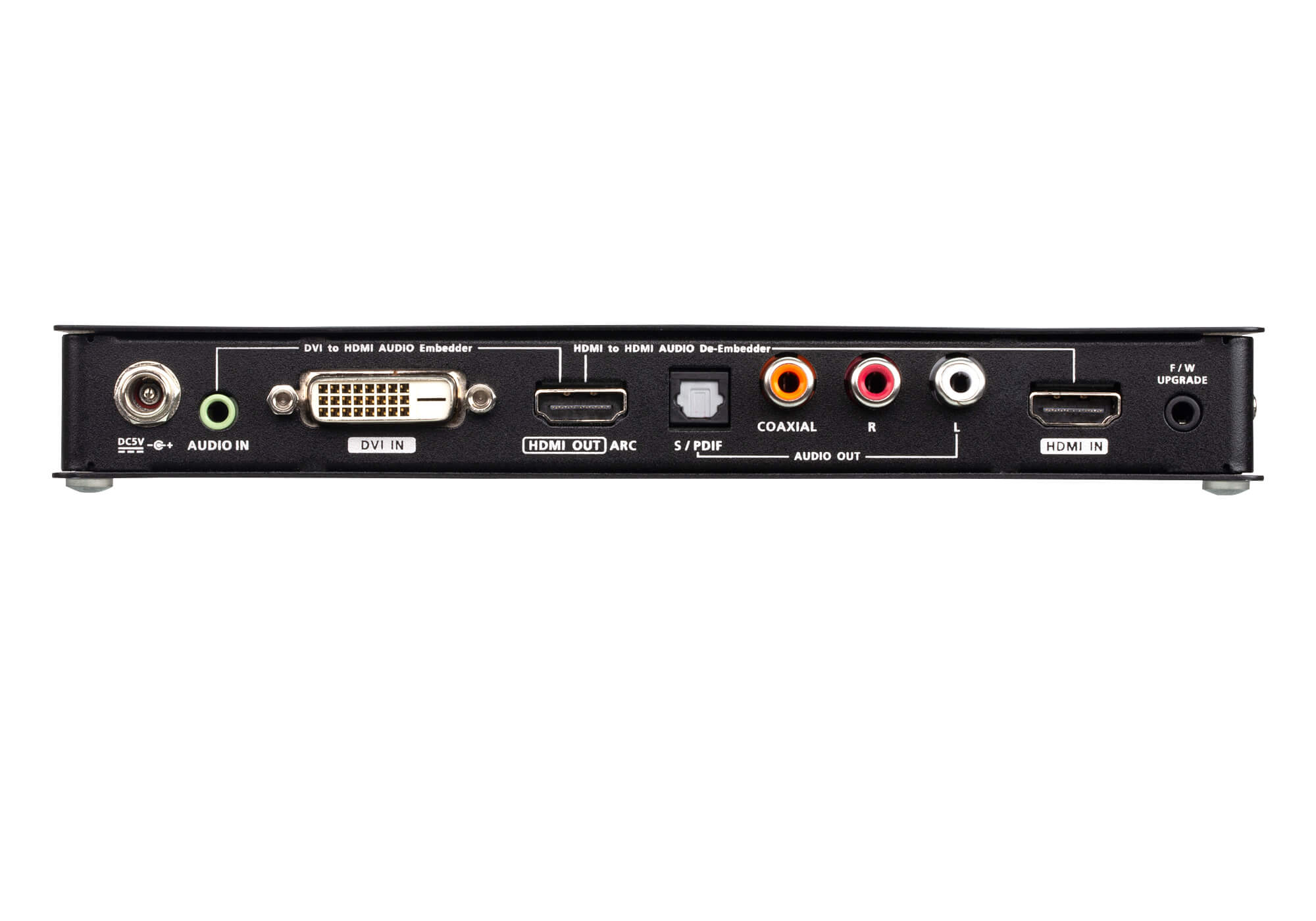

| Interfaces | 1 x HDMI Type A Female (Black) 1 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Max. Distance | HDMI: 3M DVI: 1.8M |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) with ARC |
| Impedance | 100 Ω |
| Max. Distance | 3M |
| Video | |
| Max. Data Rate | 10.2 Gps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI 1.4 (3D, Deep Color) HDCP 1.4 Compatible |
| Max. Resolution | HDMI 3840 X 2160@30HZ DVI 1920 x 1200 |
| Audio | |
| Output | Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red) |
| Input | Stereo Audio: 1 x 3.5mm jack (Green) |
| Connectors | |
| Power | 1 x DC Jack, 5V, Lockable |
| Firmware Upgrade | 1 x 3.5mm jack (FW upgrade) |
| Power Consumption | DC5V:1.767W:8BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.49 x 2.50 cm (7.95 x 3.34 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
