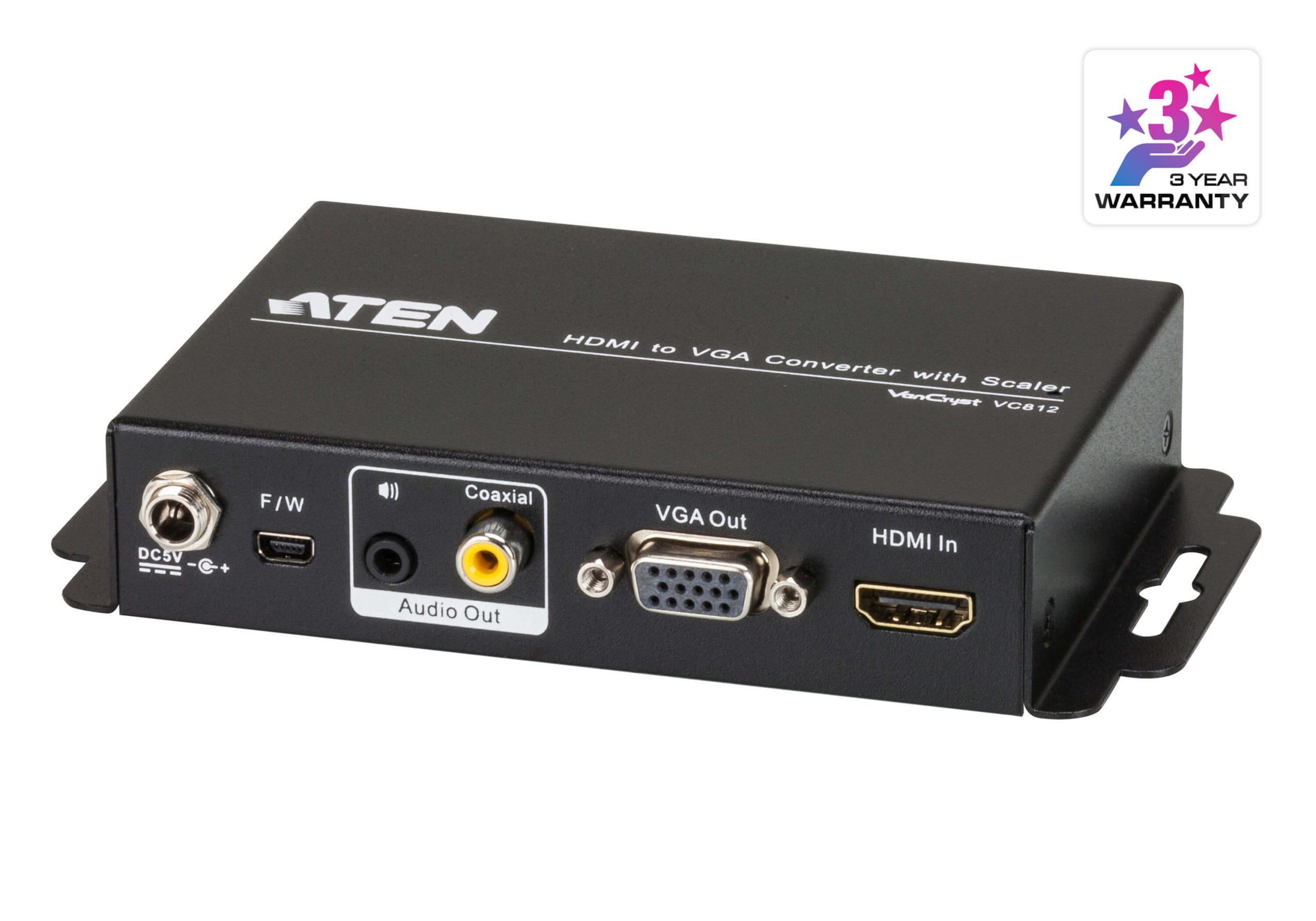

ATEN VC812
HDMI to VGA/Audio Converter with Scaler

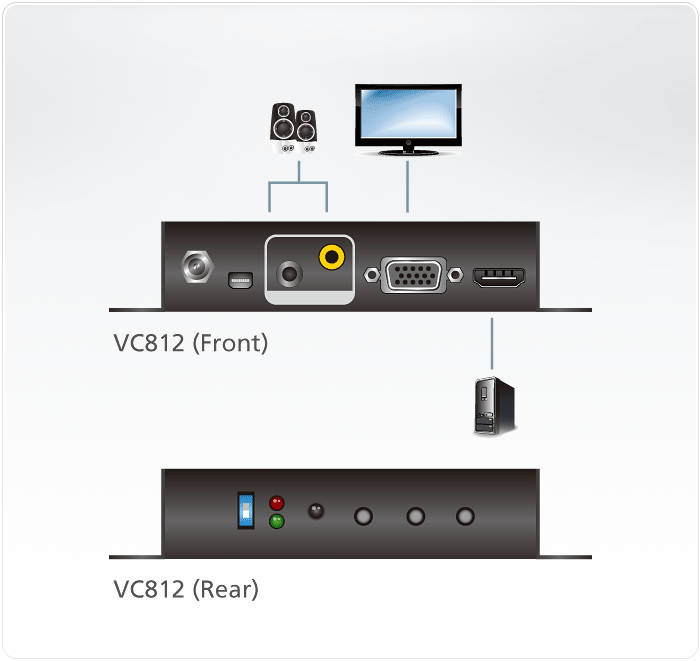

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.
Specification

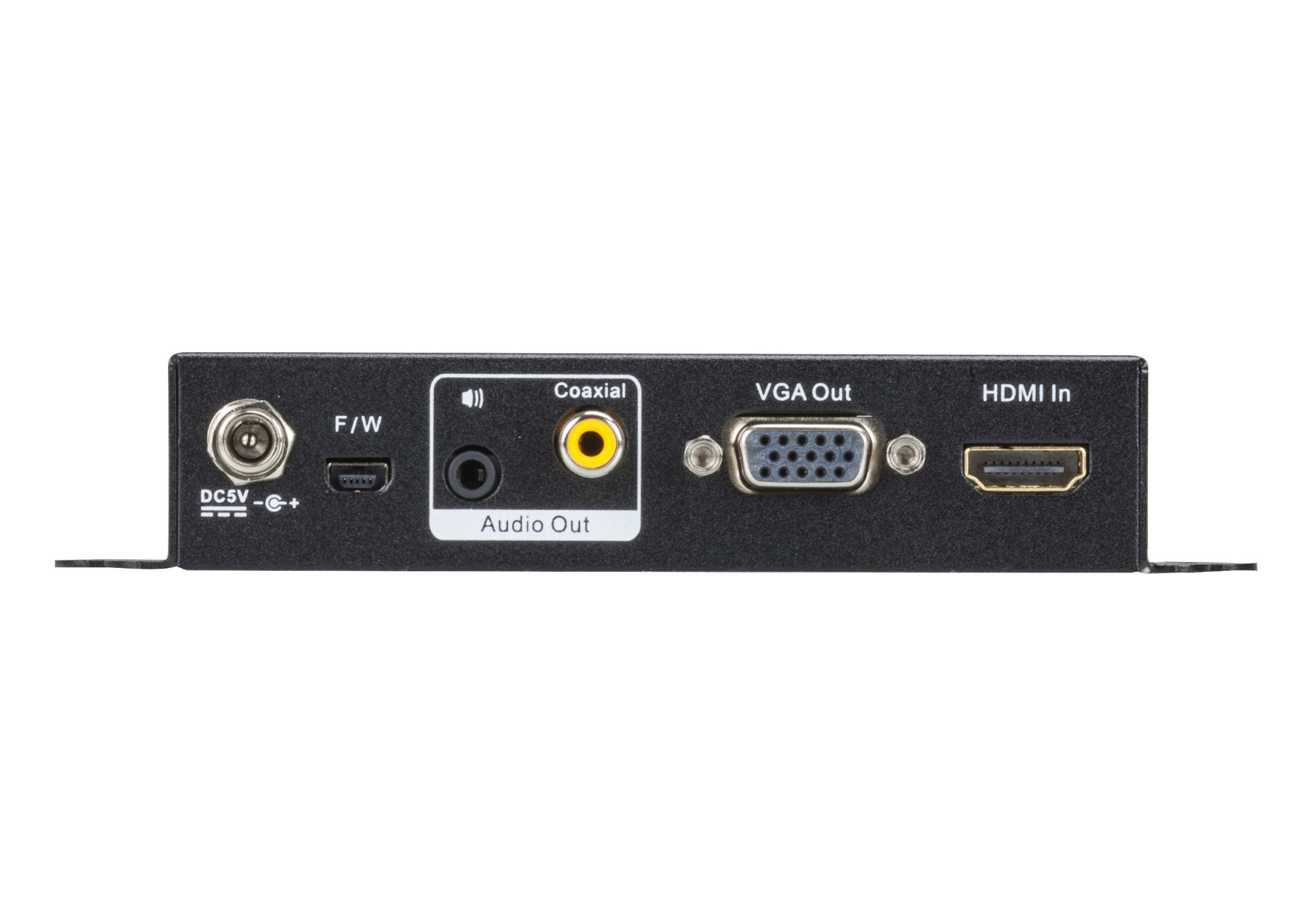

| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Black) |
| Impedance | 75 Ω |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Scaler Resolutions | 480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200 |
| Audio | |
| Output | Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:2.125WBTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 20 – 90% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.29 kg ( 0.64 lb ) |
| Dimensions (L x W x H) | 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
