ATEN VC810-AT-G
HDMI to VGA Adapter

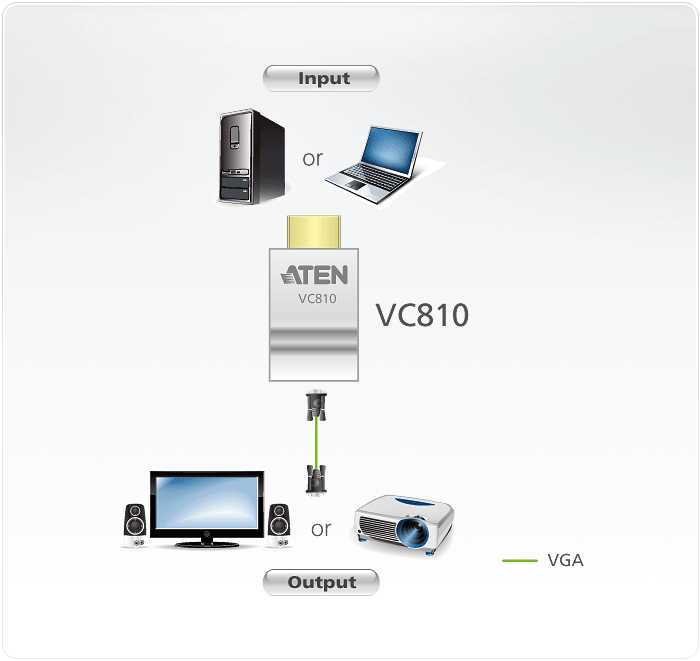

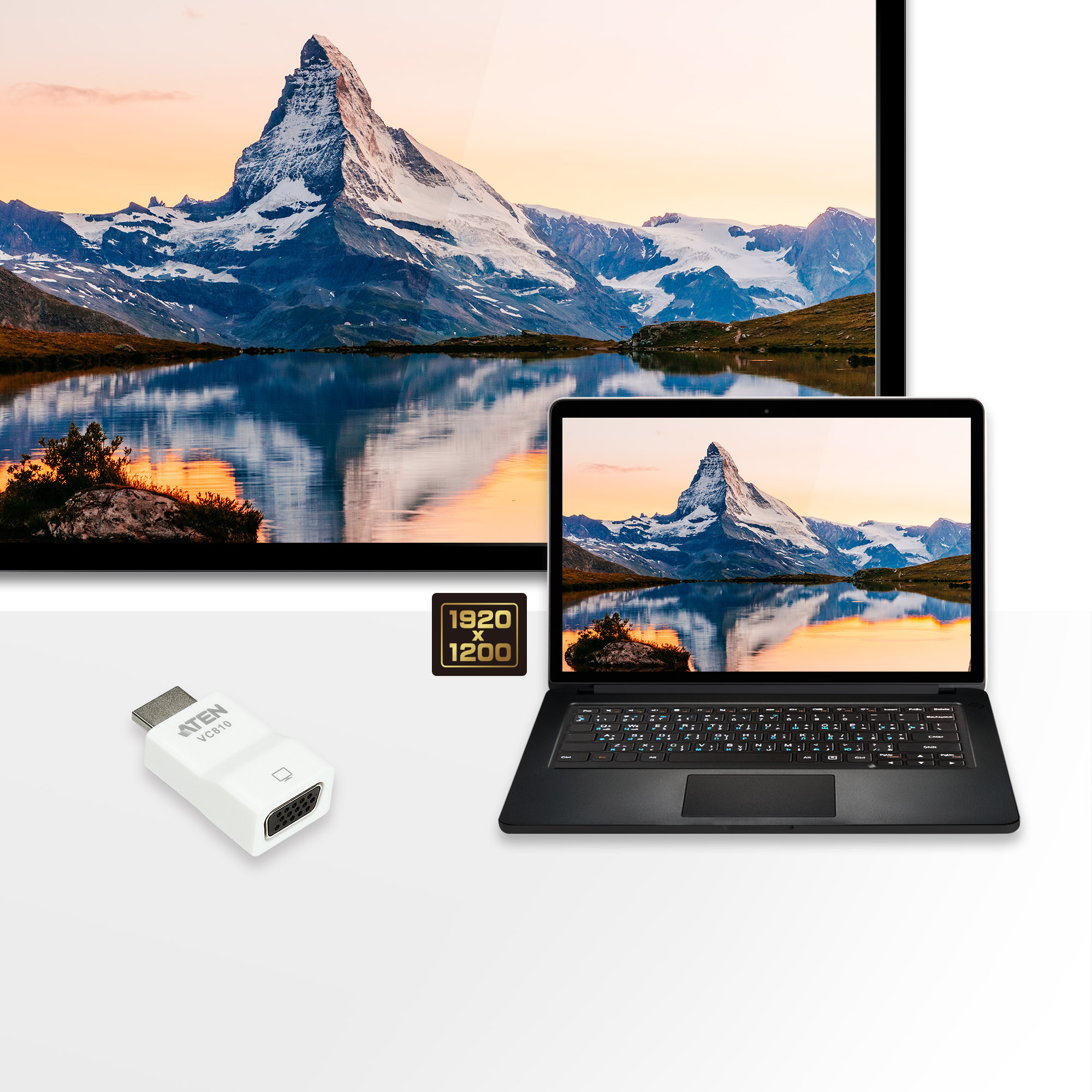

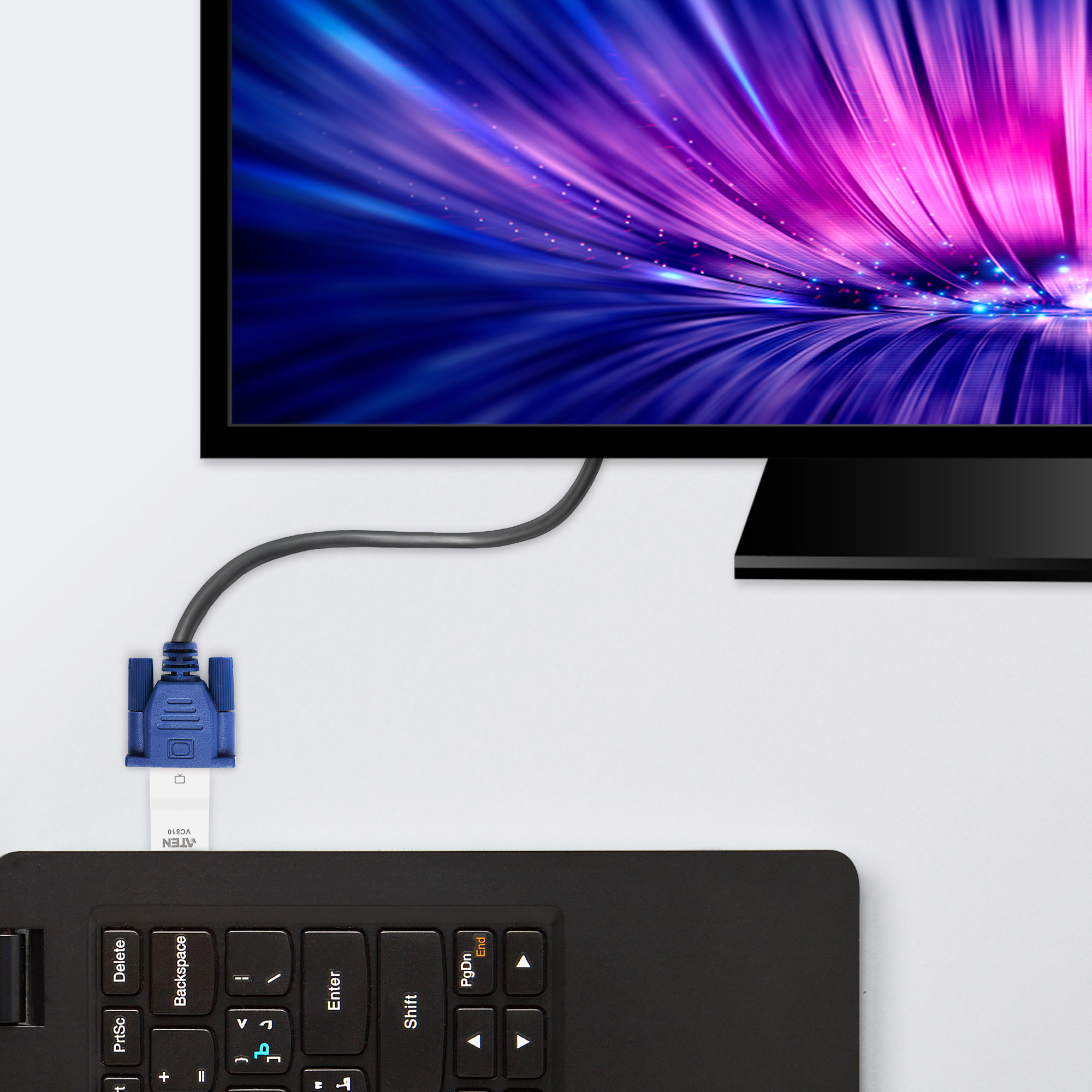

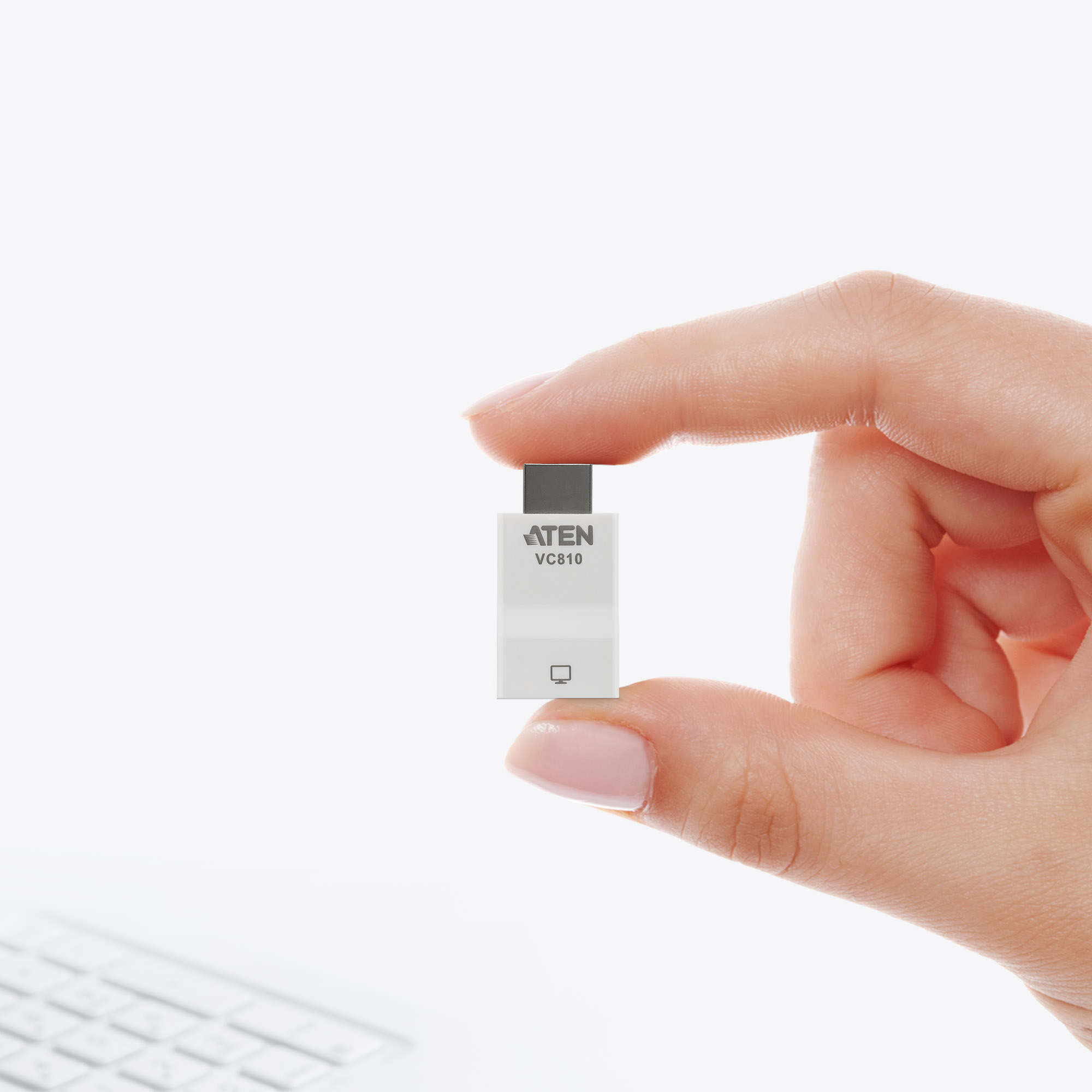

The ATEN VC810 is a compact, plug‑and‑play HDMI to VGA adapter that lets you connect an HDMI source (e.g., laptop, PC) to a VGA display (e.g., projector, monitor). No drivers or external power needed. It supports resolutions up to 1920 × 1200 and common widescreen formats.
Specification
| Video Input | |
| Interfaces | 1 x HDMI Type A Male (Black) |
| Impedance | 100 Ω |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Black) |
| Impedance | 75 Ω |
| Video | |
| Max. Pixel Clock | 200 MHz |
| Max. Resolution | Up to 1920 x 1080/60Hz |
| Environmental | |
| Operating Temperature | 0 – 60 ºC |
| Storage Temperature | -10 – 70 ºC |
| Humidity | 40 – 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.01 kg ( 0.02 lb ) |
| Dimensions (L x W x H) | 4.55 x 2.30 x 1.48 cm (1.79 x 0.91 x 0.58 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
