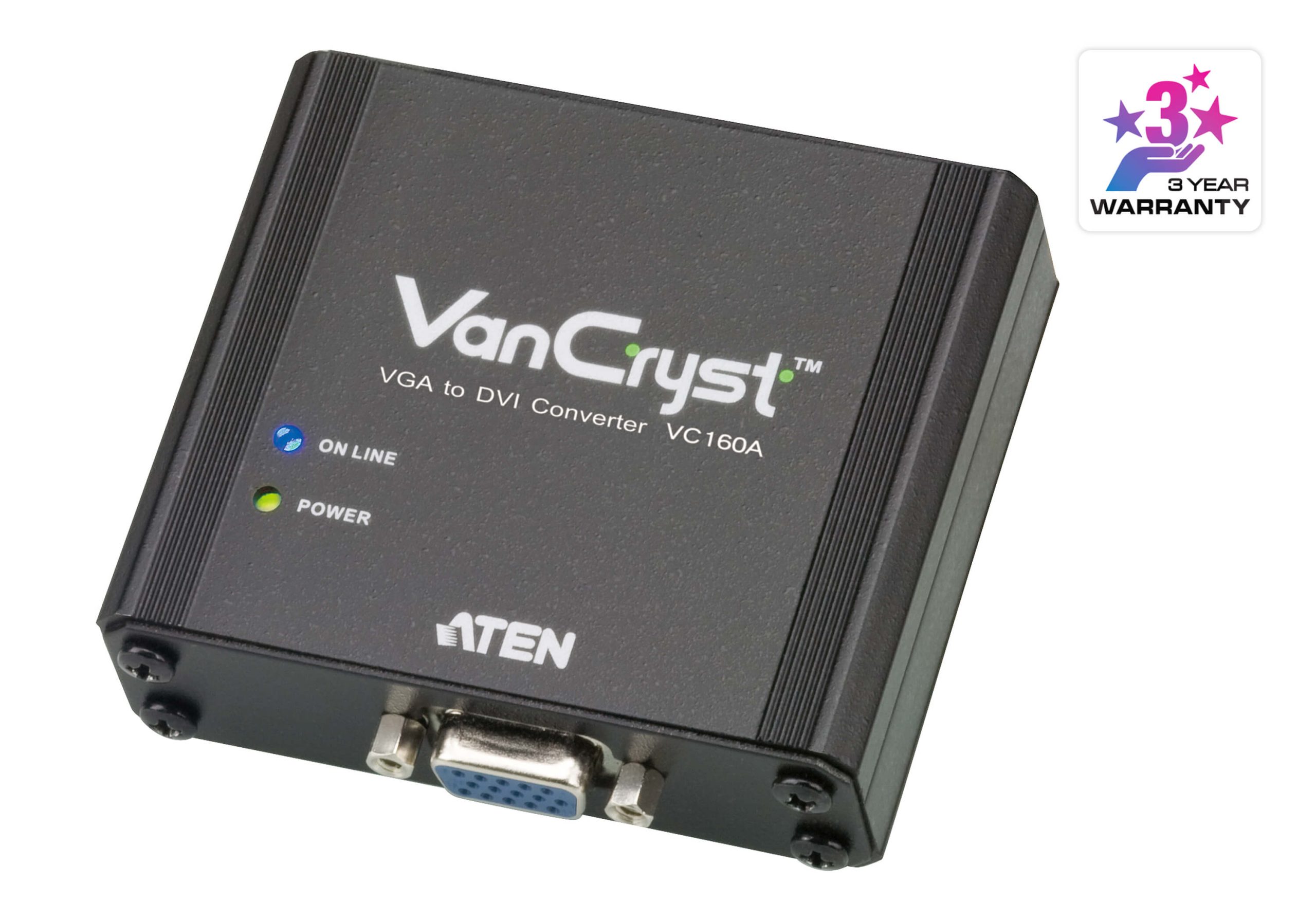

ATEN VC160A
VGA to DVI Converter
The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power
sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
Specification
| Video Input | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Video Output | |
| Interfaces | 1 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:1.64W:8BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 7.90 x 7.81 x 2.44 cm (3.11 x 3.07 x 0.96 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
