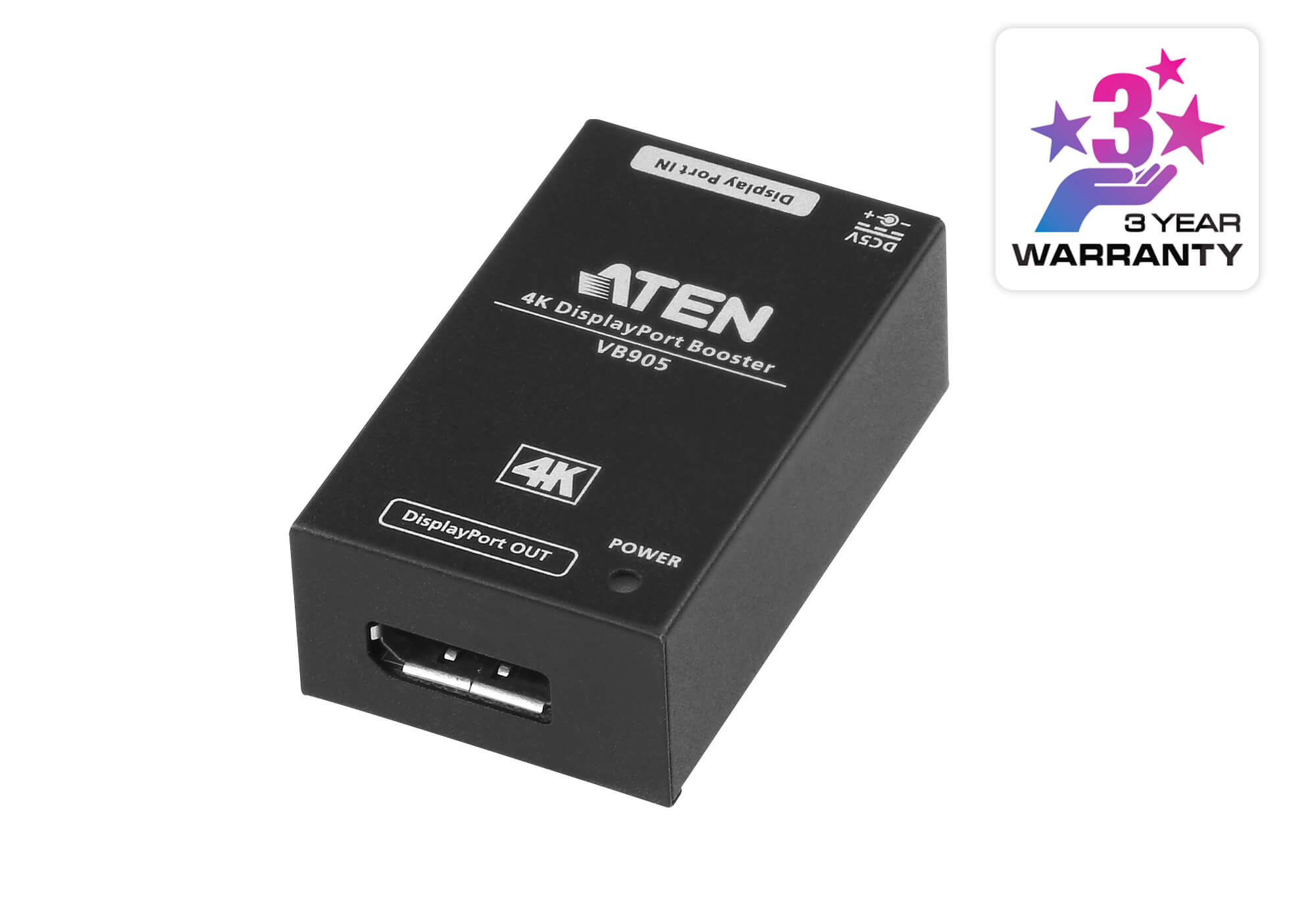

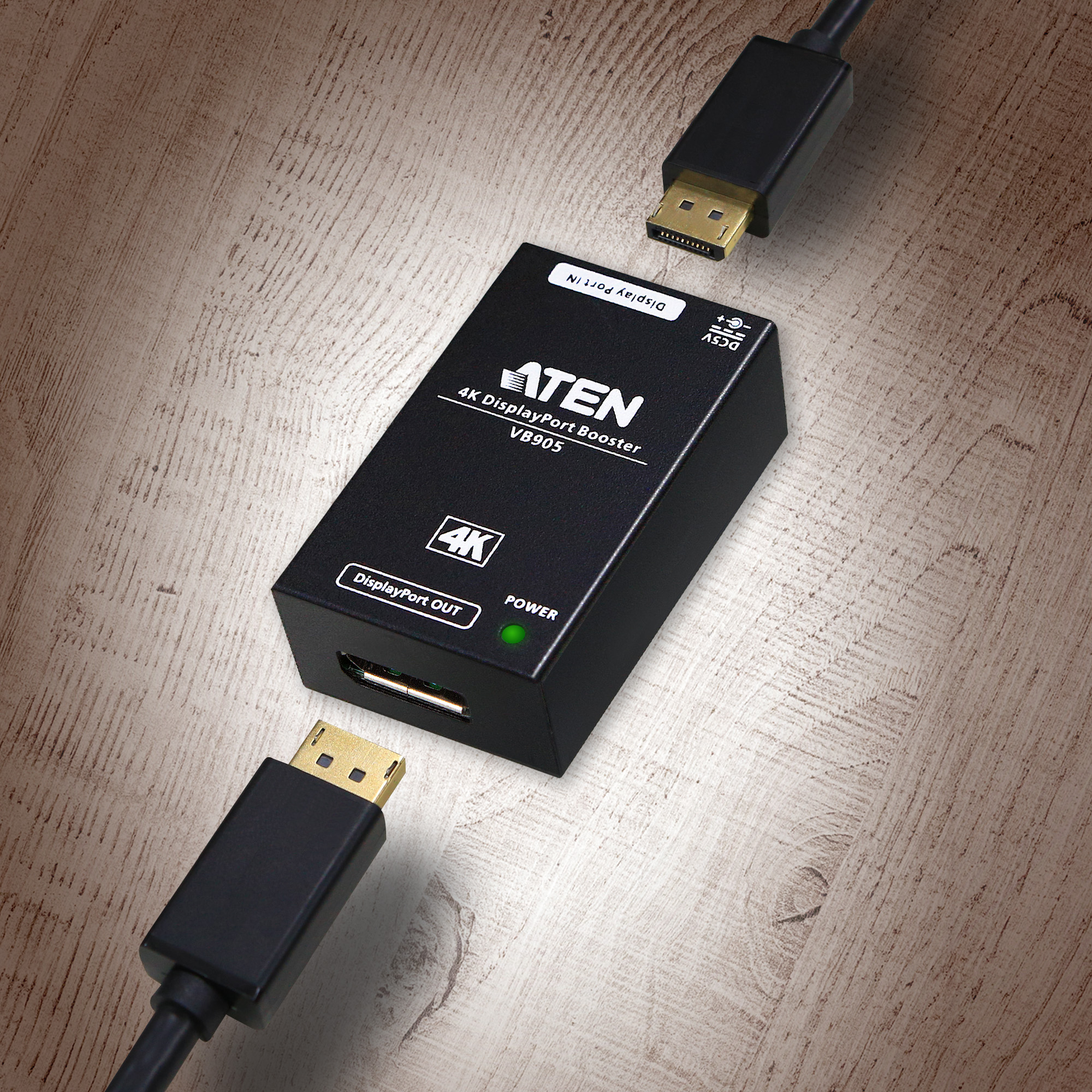

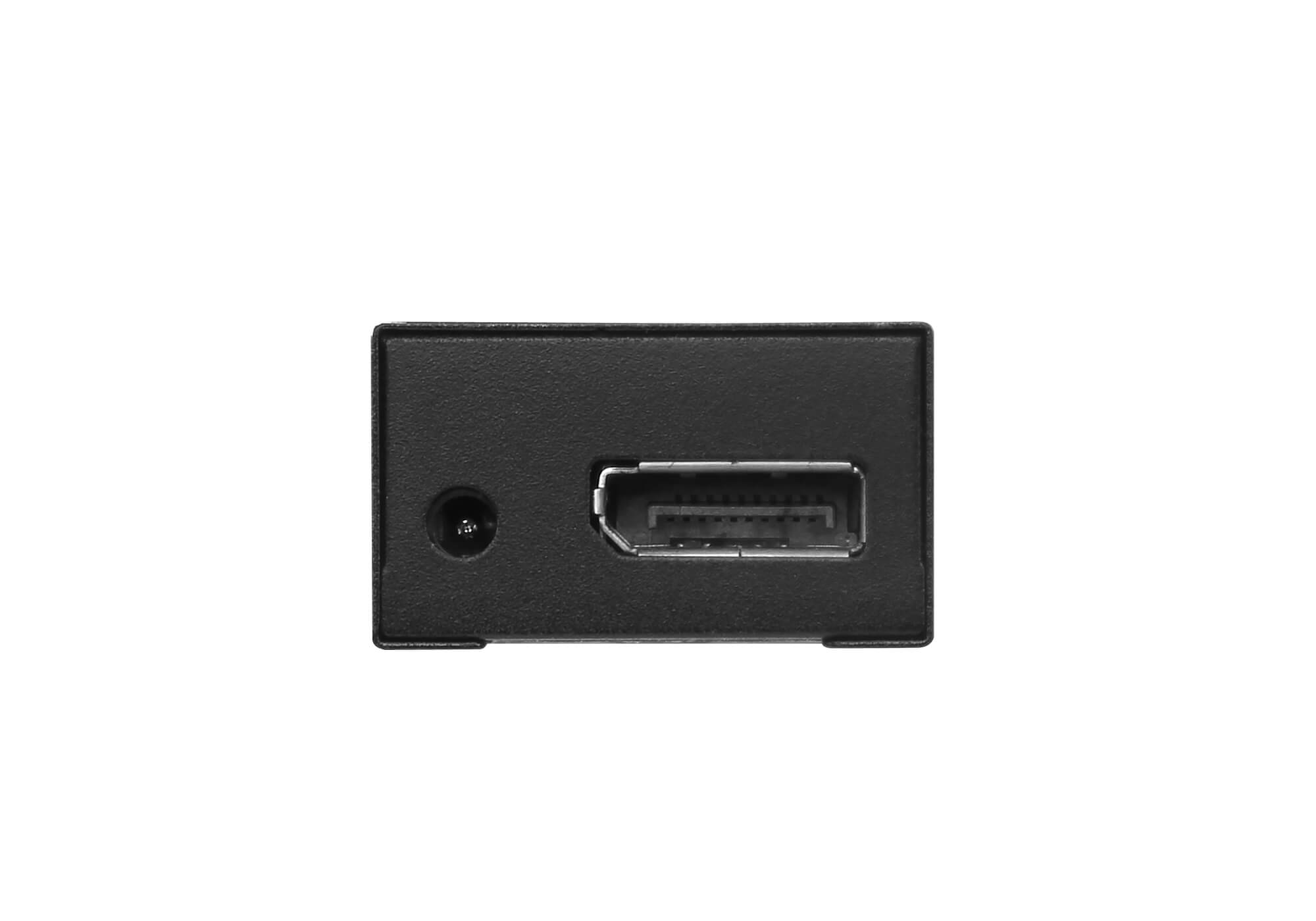

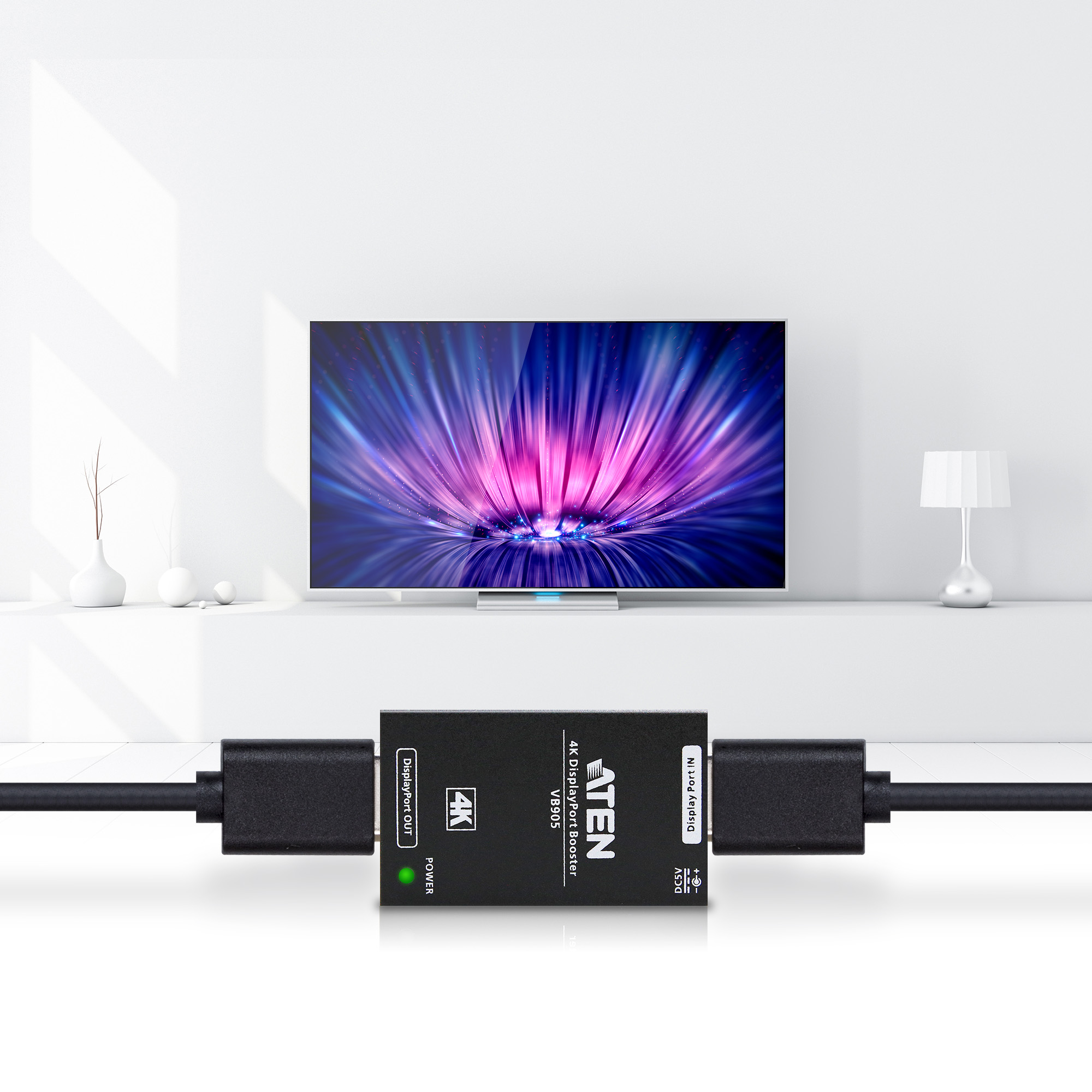

ATEN VB905
True 4K DisplayPort Booster
ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.
The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent fl exibility for managing both work and home settings.
Specification
| Video Input | |
| Interfaces | 1 x DisplayPort Female (20-pin) |
| Max. Distance | Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m |
| Video Output | |
| Interfaces | 1 x DisplayPort Female (20-pin) |
| Max. Distance | Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m |
| Video | |
| Max. Data Rate | 21.6 Gpbs (5.4 Gbps Per Lane) |
| Compliance | DP1.2a HDCP 2.2 |
| Max. Resolution | 4096 x 2160@60Hz (4:4:4) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.937W:4BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.05 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
