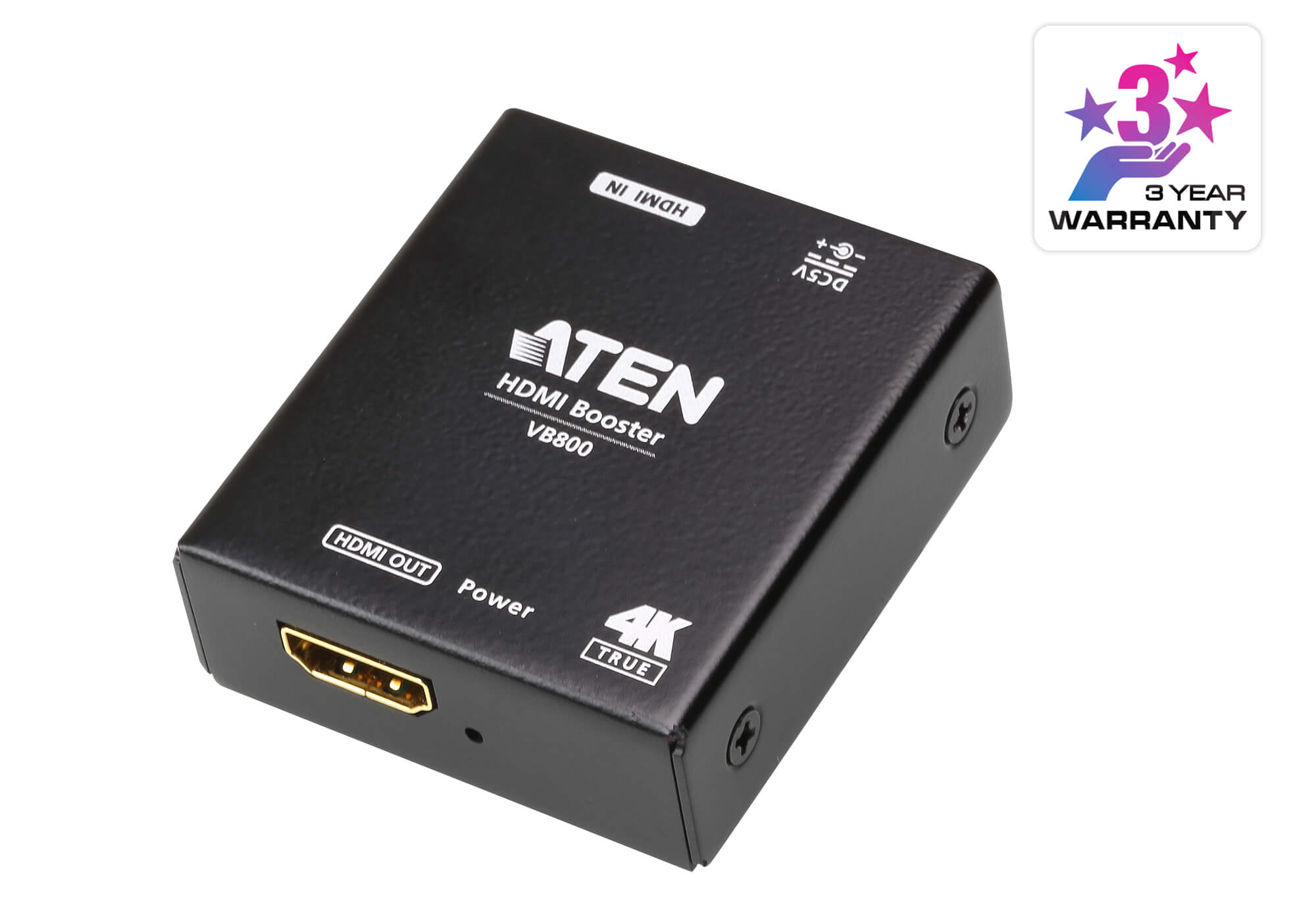

ATEN VB800-AT-G
True 4K HDMI Booster (4K@10m)

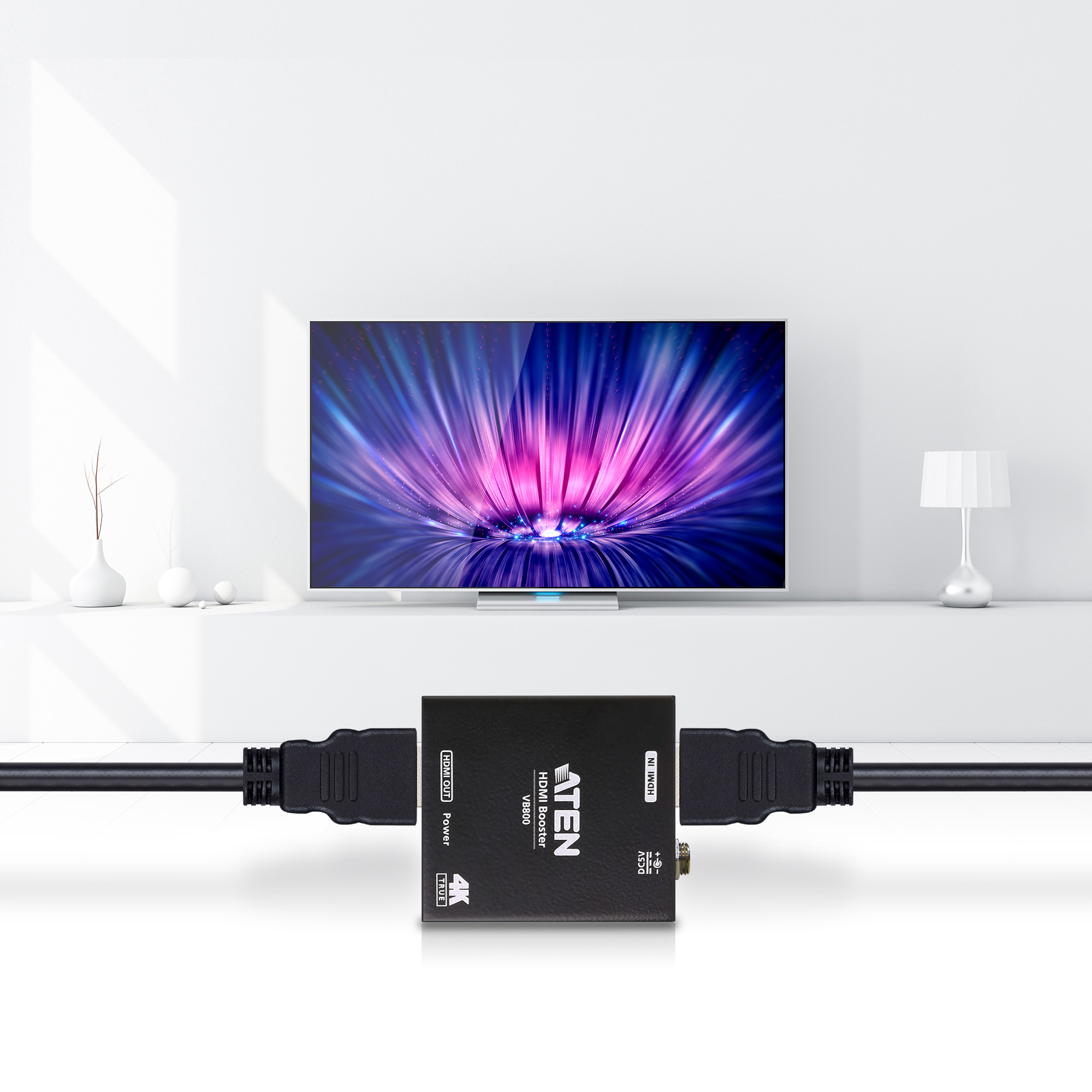

The VB800 is a True 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends True 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI compliant and supports all HDMI-enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
Specification

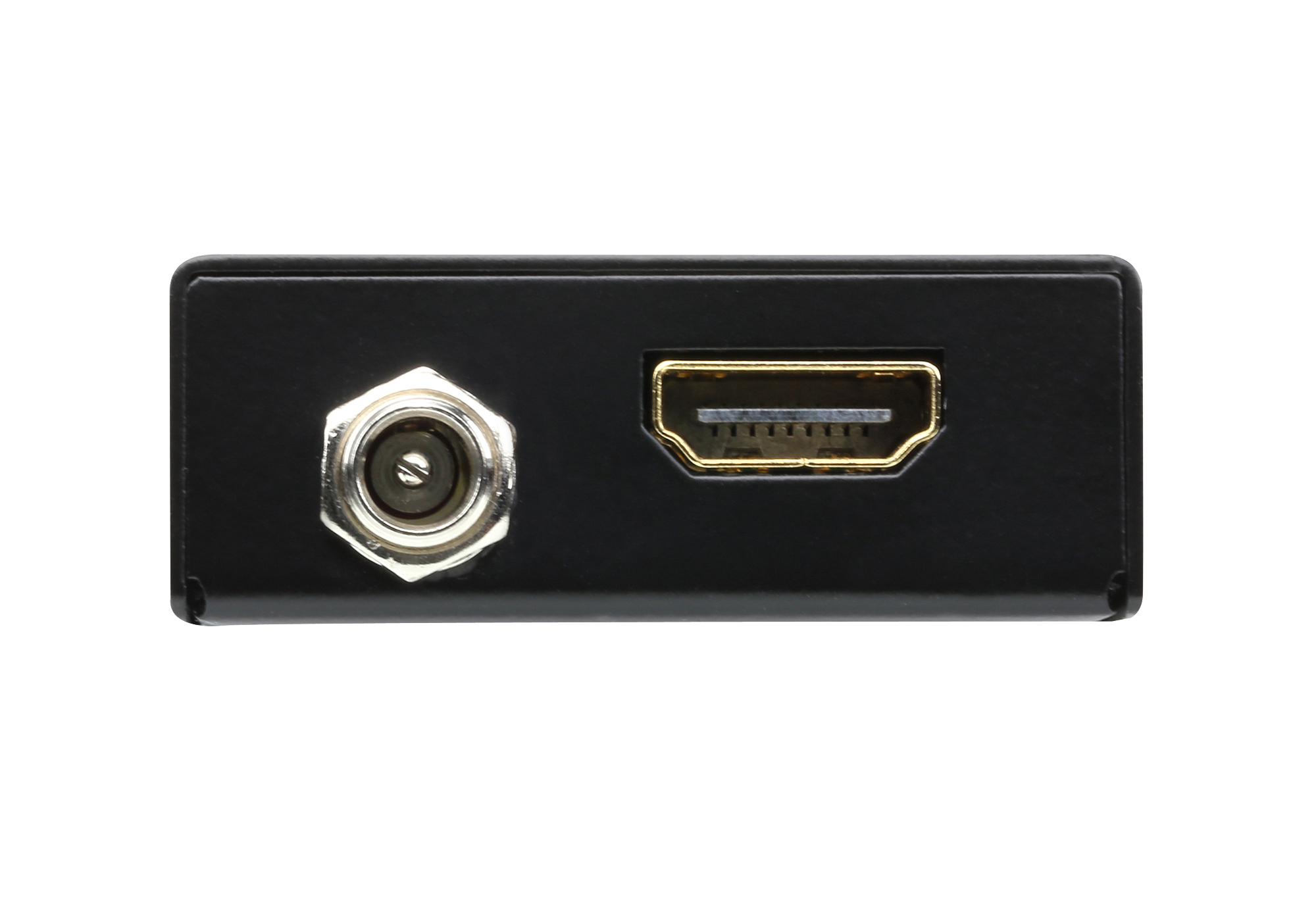

| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Max. Distance | 5M at 4096×2160@60Hz (4:4:4) |

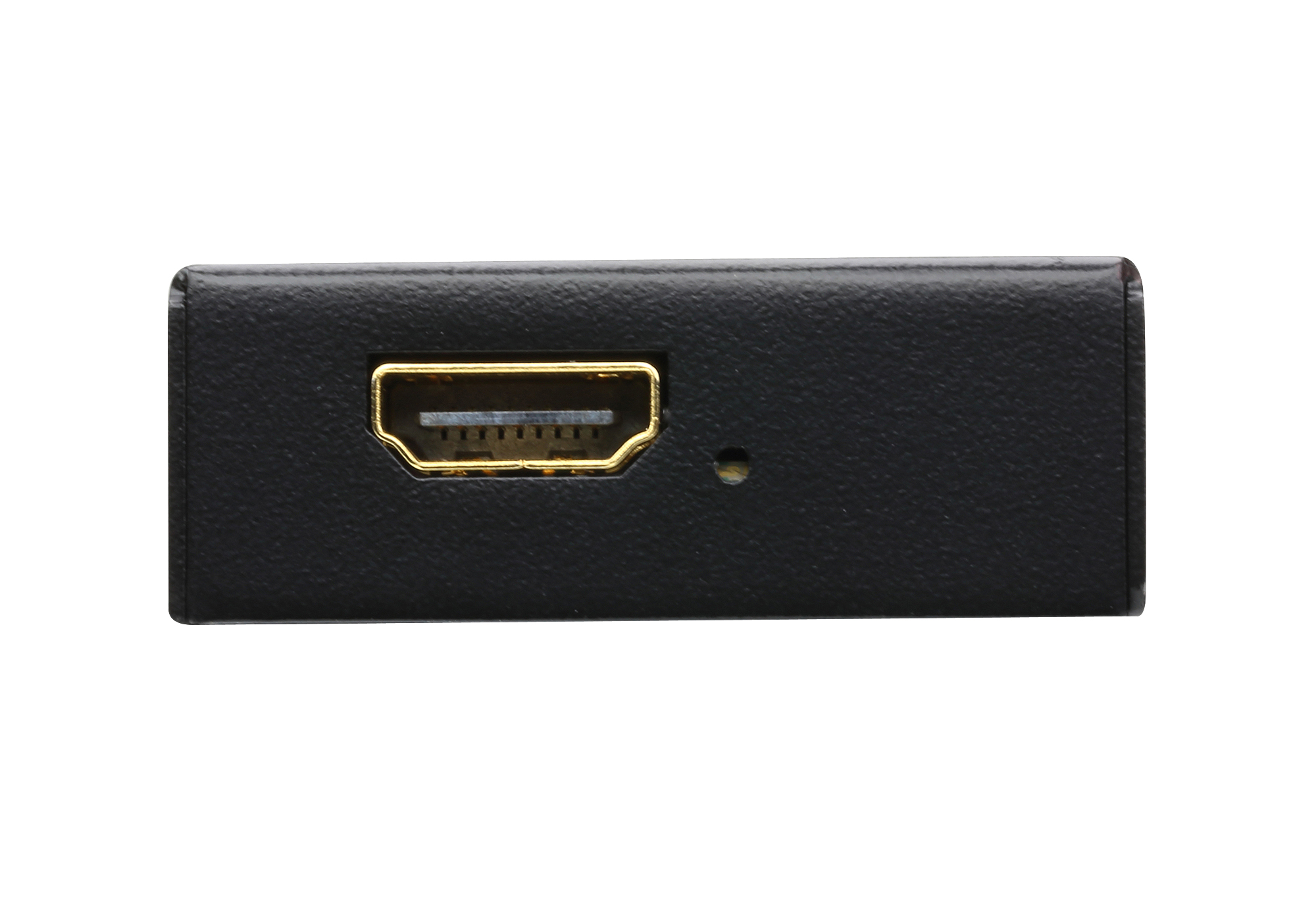

| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Max. Distance | 5M at 4096×2160@60Hz (4:4:4) |
| Video | |
| Max. Bandwidth | 600 MHz |
| Max. Resolutions / Distance | Up to 10M at 4K@60 Hz (4:4:4); Up to 20M at 1080p@60Hz |
| Max. Data Rate | 18Gpbs(6 Gbps Per Lane) |
| Compliance | HDMI, HDCP 2.2 Compatible |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.99W:5BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.09 kg ( 0.21 lb ) |
| Dimensions (L x W x H) | 4.90 x 5.60 x 1.70 cm (1.93 x 2.2 x 0.67 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
