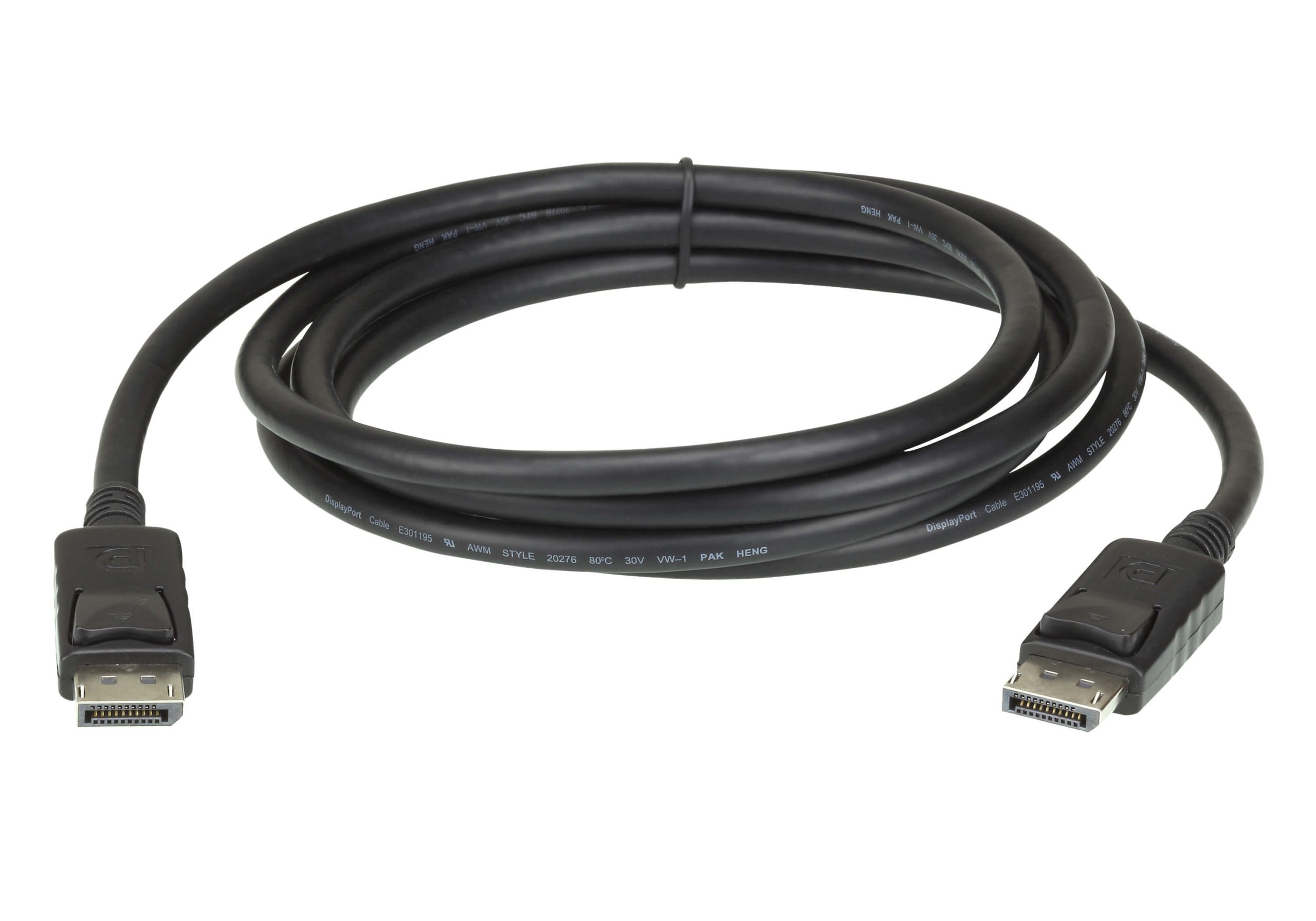

ATEN 2L-7D02DP
2 m DisplayPort rev.1.4 Cable
The ATEN DisplayPort rev.1.4 Cable supports 32.4 Gbps data rate with high-definition connectivity and advanced auxiliary channeling. It is a professional connection of your DisplayPort supported (gaming) PC, use in conjunction with ATEN DisplayPort solutions, laptop to an ultra high resolution monitor, or other DisplayPort interface devices. Our DisplayPort rev.1.4 Cable allows for up to 8K Dynamic HDR with 32 channels for high quality video and audio experience. Each connector features latches that provide a secure connection with a release button.
Specification
| Max. Video Resolution | 7680×4320@60Hz |
| Physical Properties | |
| Cable Length | 2M |
| Cable Color | Black |
| Cable Outer Dimension | 6.5 ± 0.2mm |
| Conductor Gauge | 30AWG |
| Conductor Material | Tinned Copper |
| Connector Plating | Nickel |
| Connector Type | DisplayPort (20 pin) Male to Male |
| Cable Shield Type | Aluminum Magnesium Alloy |
| Cable Jacket Type | PVC |
| Environmental | |
| Operating Temperature | 80℃ |
| Rating | UL VW-1 (Flame rate), CSA |
