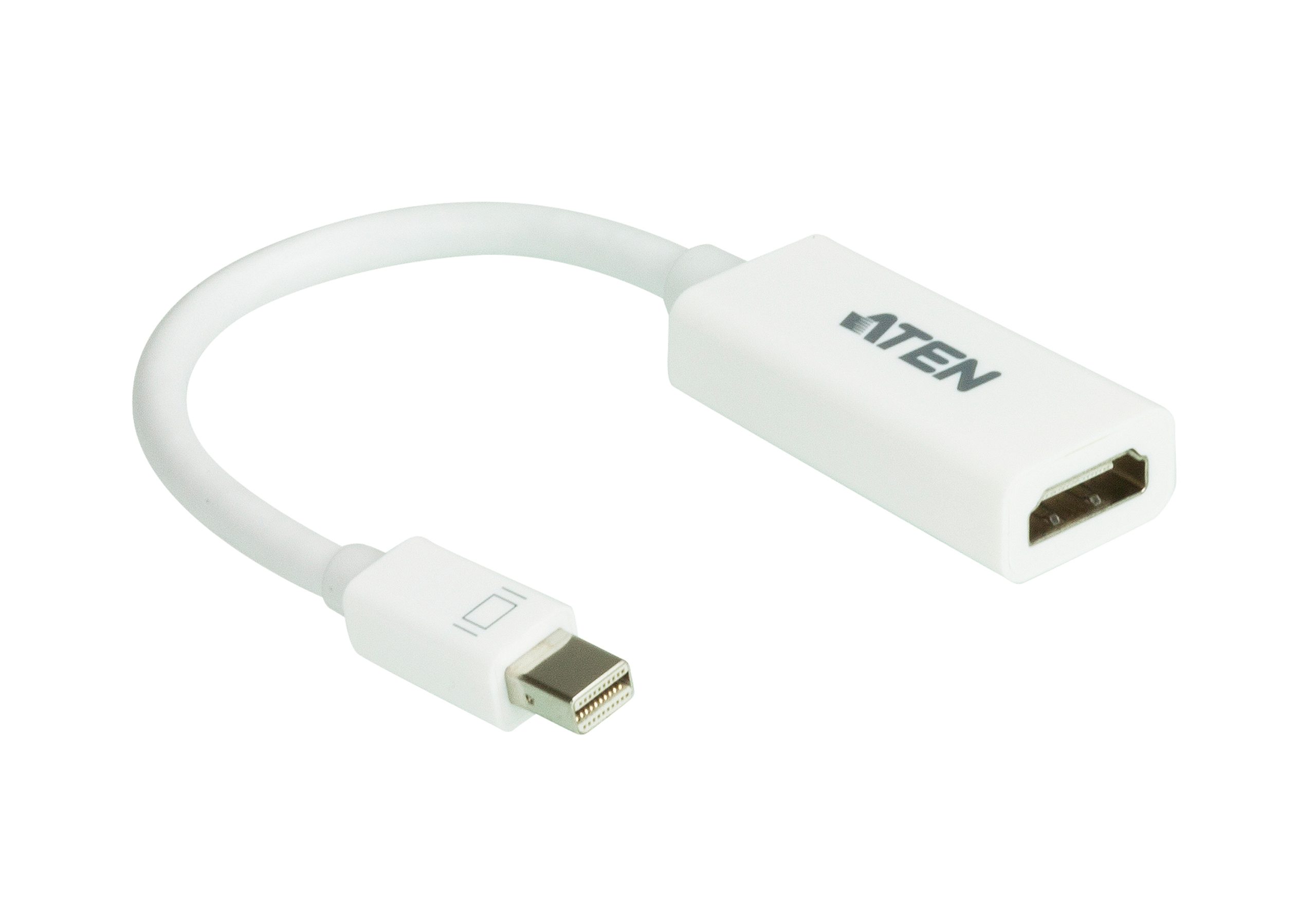

ATEN VC980-AT
Mini DisplayPort to HDMI Adapter

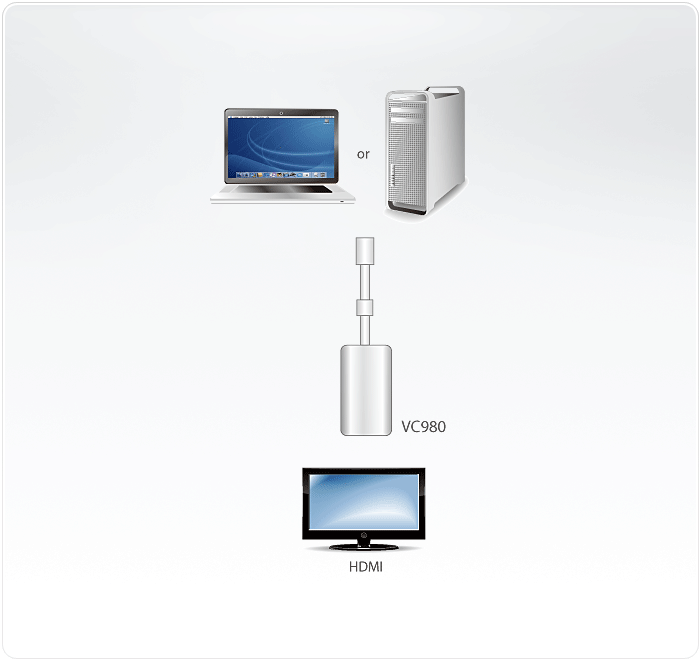

The ATEN VC980 is a Mini DisplayPort to HDMI adapter that enables you to connect devices like laptops (MacBook, MacBook Pro, Mac mini) featuring Mini DisplayPort output to HDMI‑compatible displays. It supports resolutions up to 1920×1200 for PC and 1080p for HDTV, delivers both video and audio, is fully plug‑and‑play with no drivers needed, and supports DisplayPort 1.2a standard.
Specification
| Video Input | |
| Interfaces | 1 x Mini DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.03 kg ( 0.07 lb ) |
| Dimensions (L x W x H) | 19.00 x 2.10 x 1.11 cm (7.48 x 0.83 x 0.44 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
